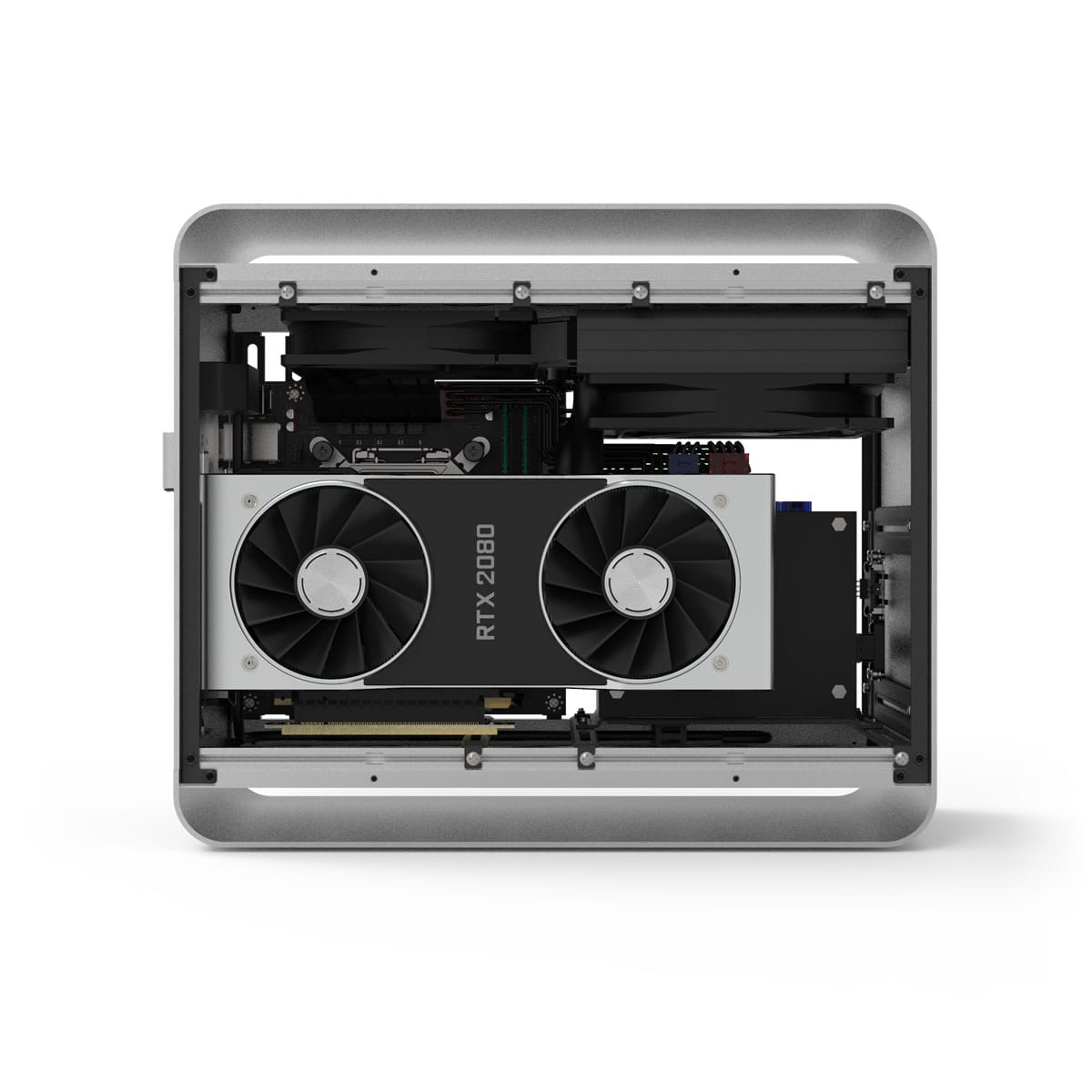

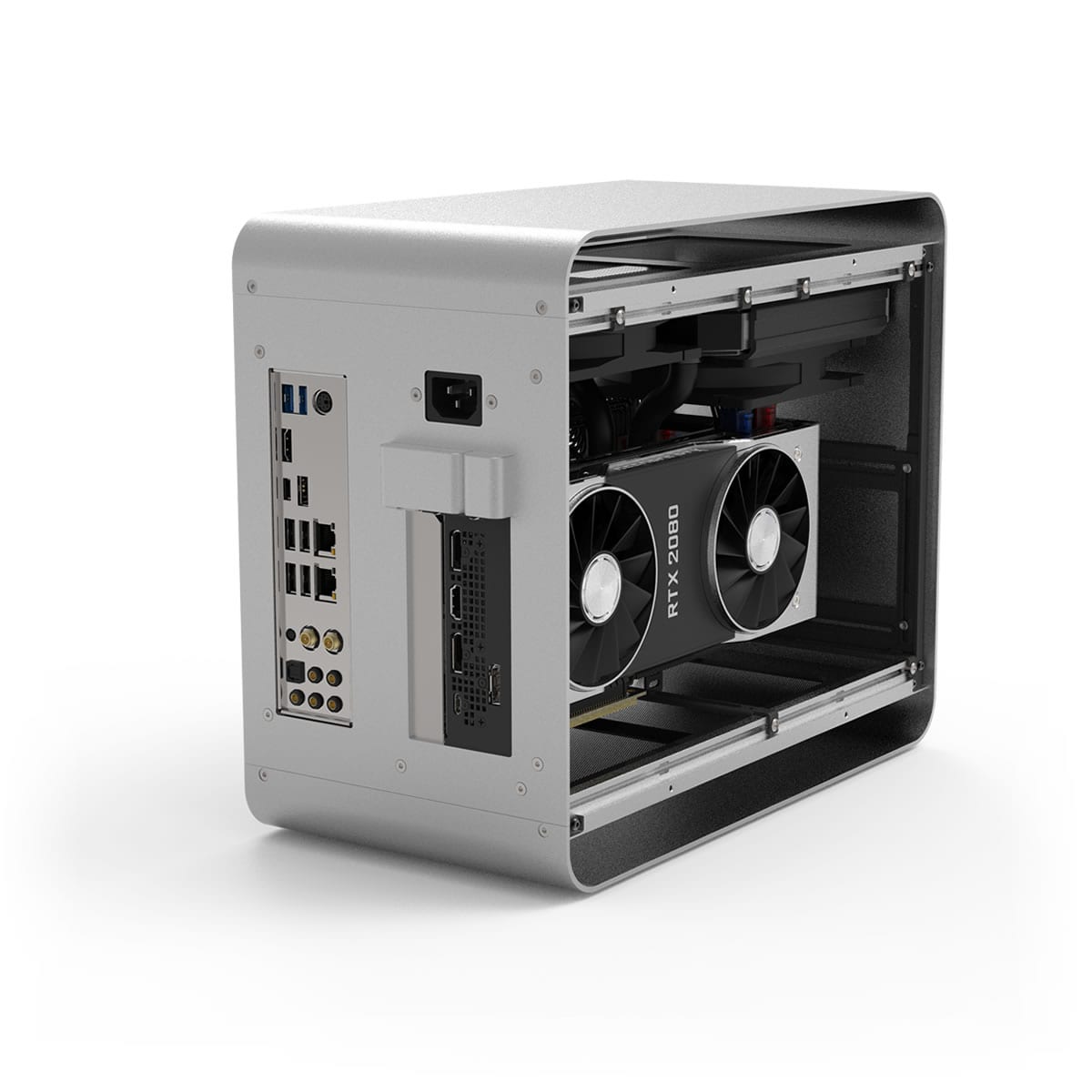

Until recently, the majority of performance graphics cards have required no more than 2 slots, however, the current trend is towards 2.5 and 3 slot cards. Whilst the DA2 can accommodate some 2.5 slot cards, the Vertical GPU Kit provides an alternative solution for thicker cards allowing them to comfortably fit by rotating the orientation 90 degrees.

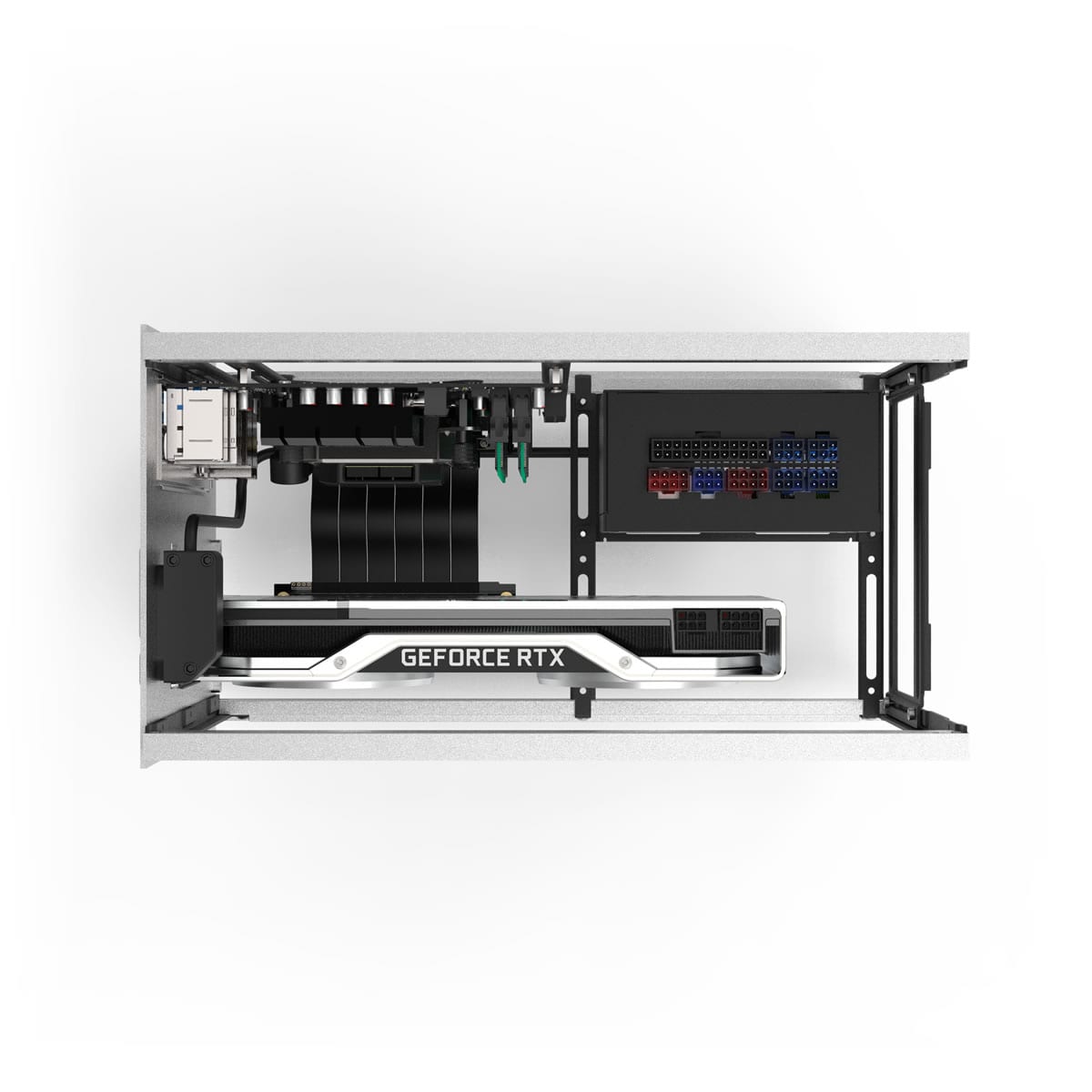

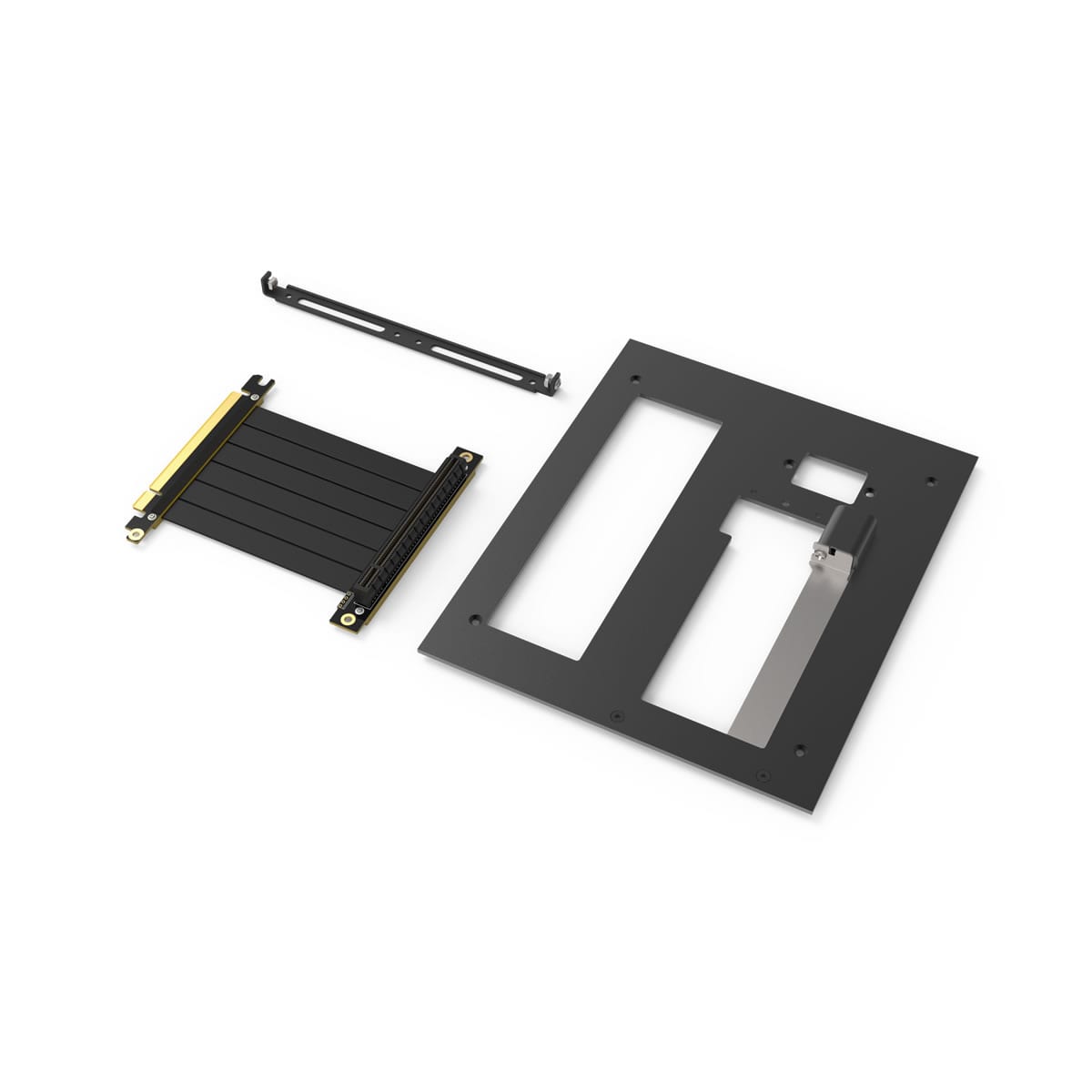

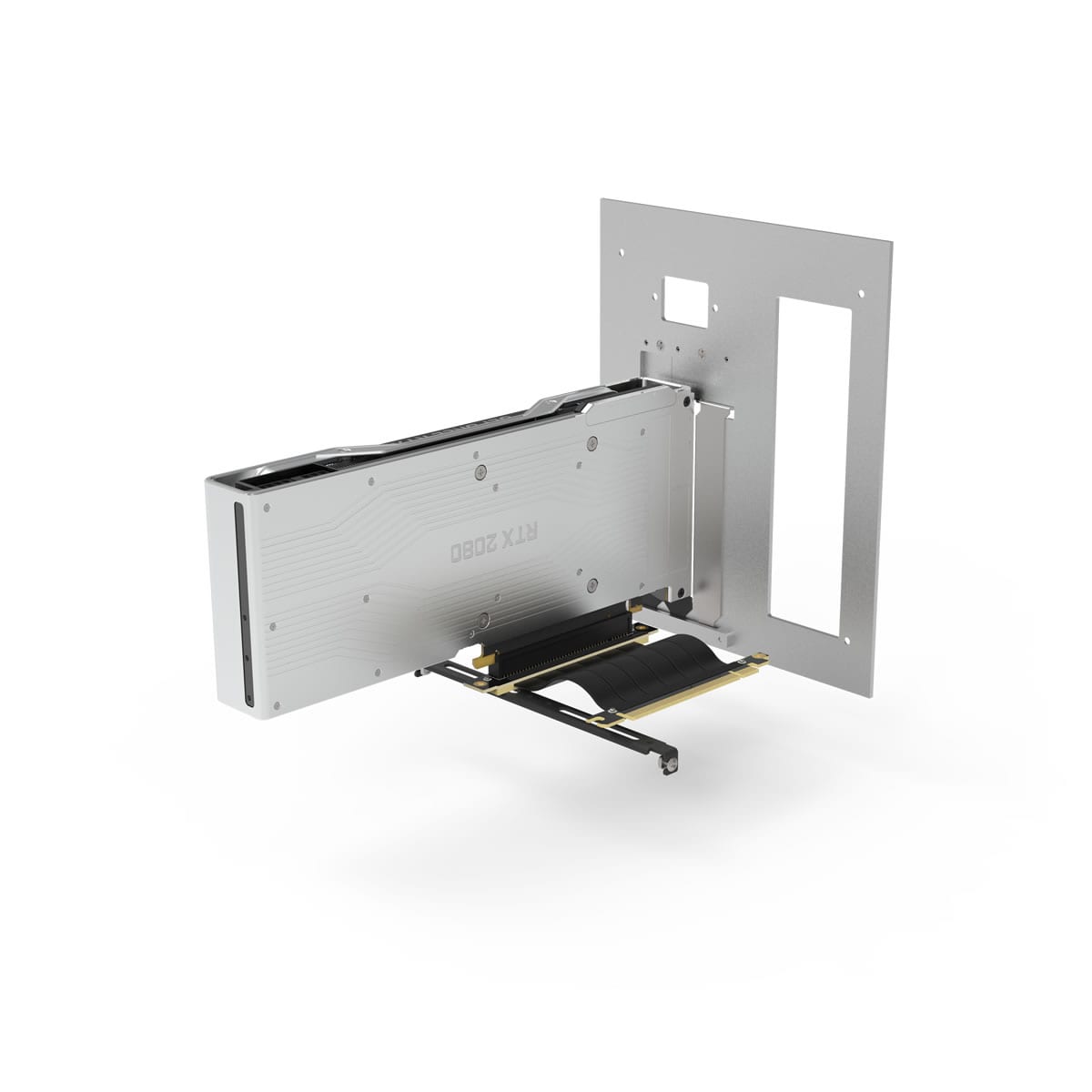

Vertically orientating the card also frees up space at the bottom of the case, allowing the motherboard and PSU location to move there, leaving more room at the case top for cooling. With the included high-quality flexible riser cable, the card can be used in any of the 3 PCI slots depending on the card thickness and CPU cooler clearance required.

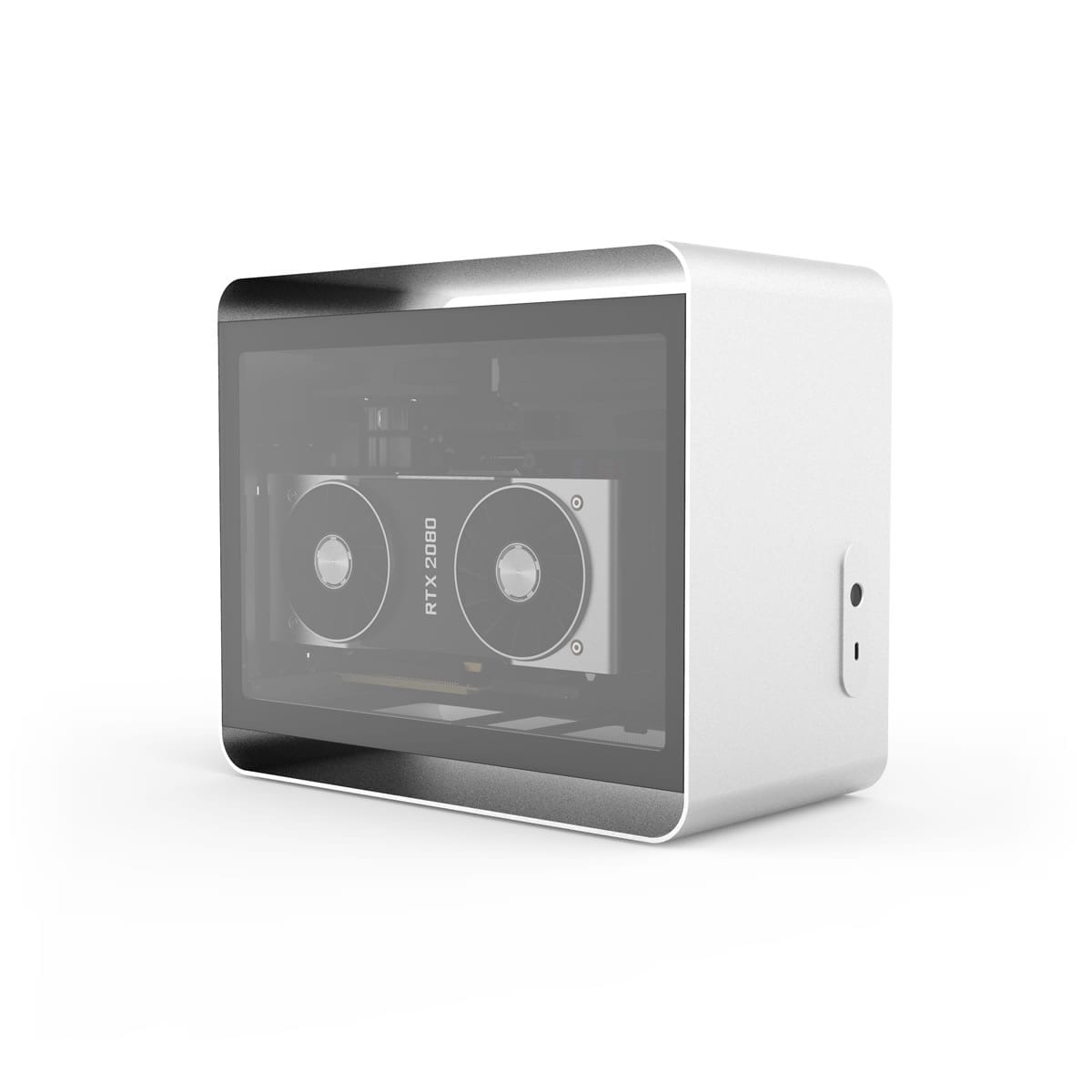

Combined with the DA2 glass side panels, the Vertical GPU kit can also be used to create a showcase PC, perfectly positioning the graphics card on display.
Same grade and finish of AL as the original back panel
Dimensions 217 x 181 x 2.5mm

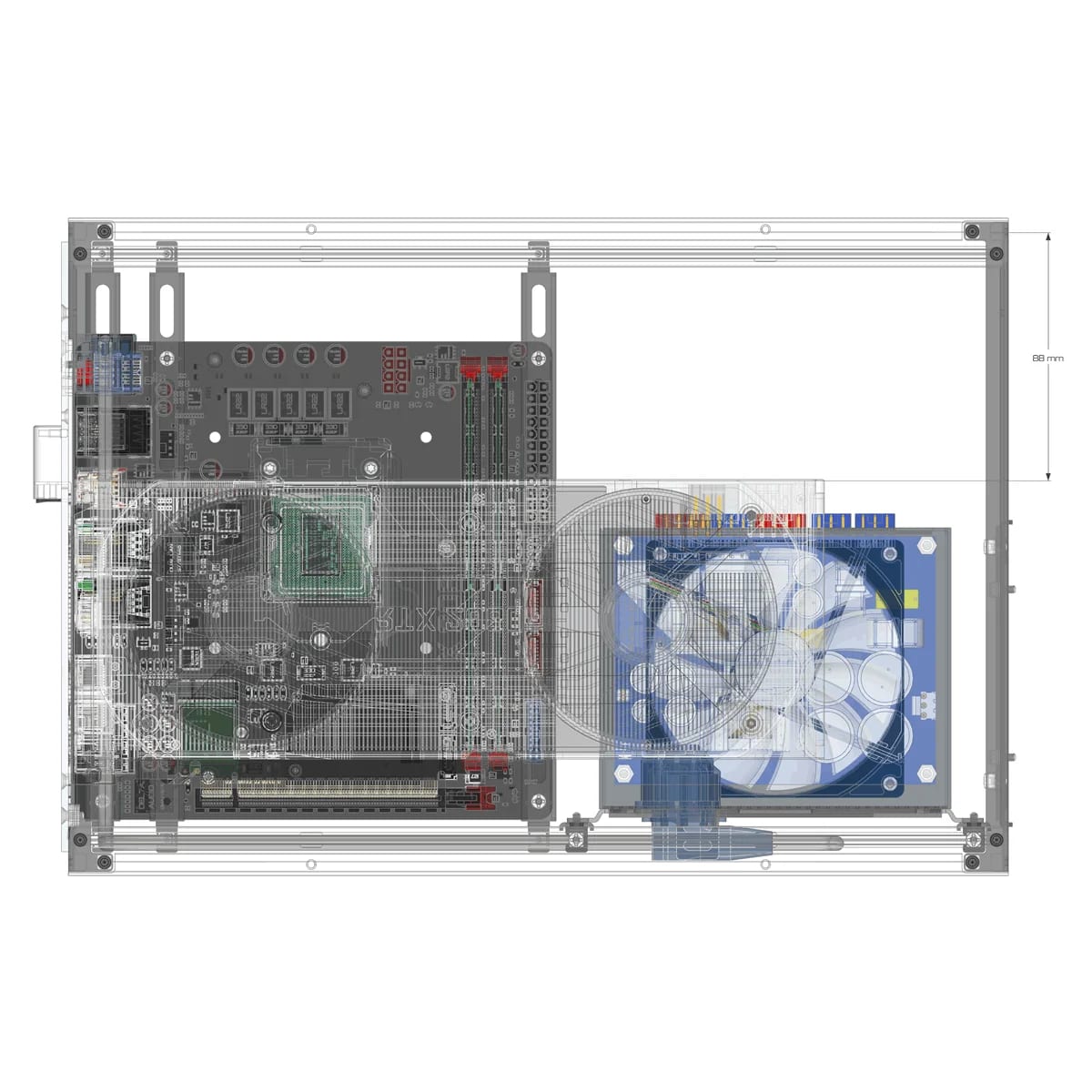

Max CPU Cooler Height Slot 3 – 104mm
Slot 2 – 84mm, Slot 1 – 64mm
Flexible Riser Cable Length 100mm
PCIe Gen3 & Gen4* depending on hardware
Compatible Chassis DA2 V1 + V2
Not compatible with DTX motherboards
Black SKU ST-DA2B-VGPUK
Silver SKU ST-DA2S-VGPUK
Most kits and accessories are available from our main retailers but some are only sold direct. If your retailer is out of stock or does not list this product, please get in touch and our sales team will help.
The included flexible riser cable is certified for Gen 3 and depending on hardware is compatible with Gen 4 however some graphic card and motherboard combinations will require enabling Gen 3 support in the BIOS
If you can’t find the information you need, please send us a message using the ‘Get in Touch’ link at the top right of the page, choose the appropriate department and we will respond with the relevant information.
