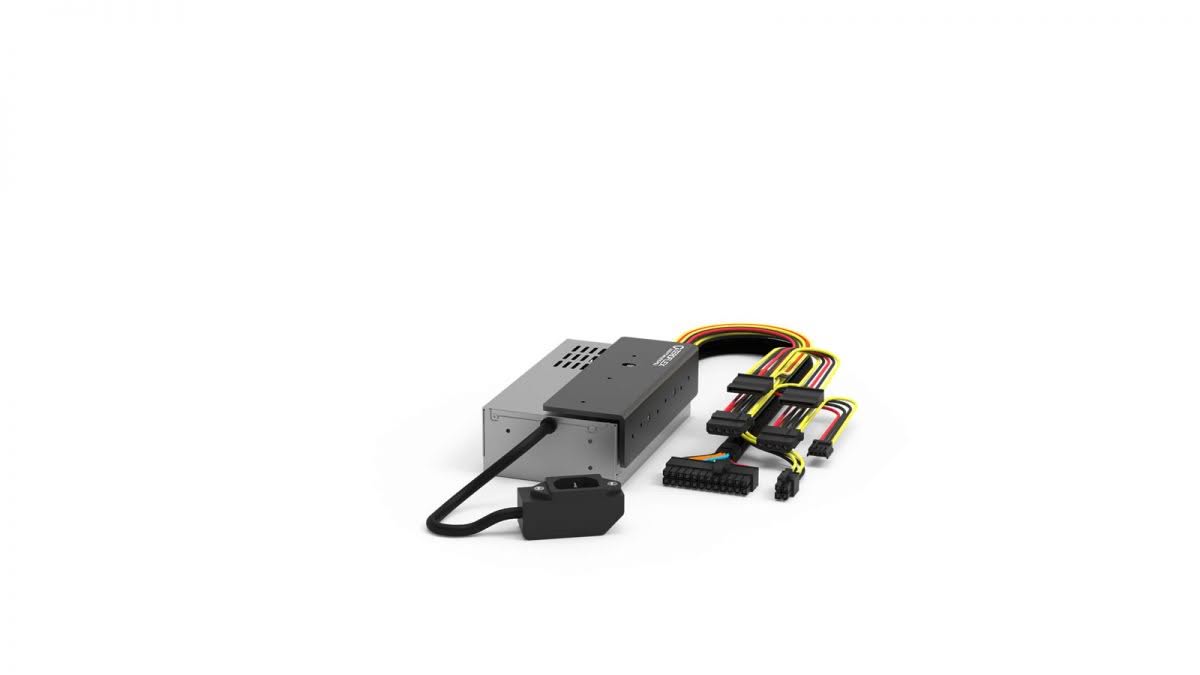

The Streacom ZeroFlex 240 has been designed to push the limits of compact and silent computing power.

Encased in an all aluminium enclosure which is based on the Flex form factor (81.5×41.5x150mm), the ZeroFlex can deliver 240W of combined power without the need for any active cooling. This has been achieved by the use of high quality components and innovative circuit design which achieves >93% efficiency levels. To put things in perspective, if the ZF240 was actively cooled, it would be rated as a 450W power supply.

The ZF240 is compatible with the FC5 Evo, FC9,FC10 and DB4 chassis, increasing the range of compatible components and removing the need the external AC adapter. The unique ‘L’ bracket mounts directly to the case heatsinks, allowing heat to be dissipated outside the case, and the flexible AC socket makes the mounting position adaptable, so its compatible with current and future Streacom cases.
Power Output: 240W Combined, 3.3V @ 10A, 5V @ 10A, 5VSB @ 2A, 12V @14A, -12V @ 0.3A
Input Power: 100-240V AC 50/60Hz
Output Connectors: 1 x 20+4 ATX, 1 x 4PIN CPU, 2 x SATA, 2 x MOLEX, 1 x FDD
Input Connector: IEC C14 Socket
Internal Input Cable Length: 150mm
Output Cable Length: 400mm
Dimensions: 139 x 86 x 47(LxWxH)
Compatible Cases: FC5 Evo/Alpha*, FC9/FC9 Alpha**, FC10/FC10 Alpha***, DB4
Weight: 848g NET

* Limited to Micro-ATX or Mini-ITX Motherboard & Half Height Expansion Cards,
   An elbow (90 Degree) SATA connector is required for Optical Drive Version

** Limited to Mini-ITX Motherboards

*** Limited to Micro-ATX or Mini-ITX Motherboard

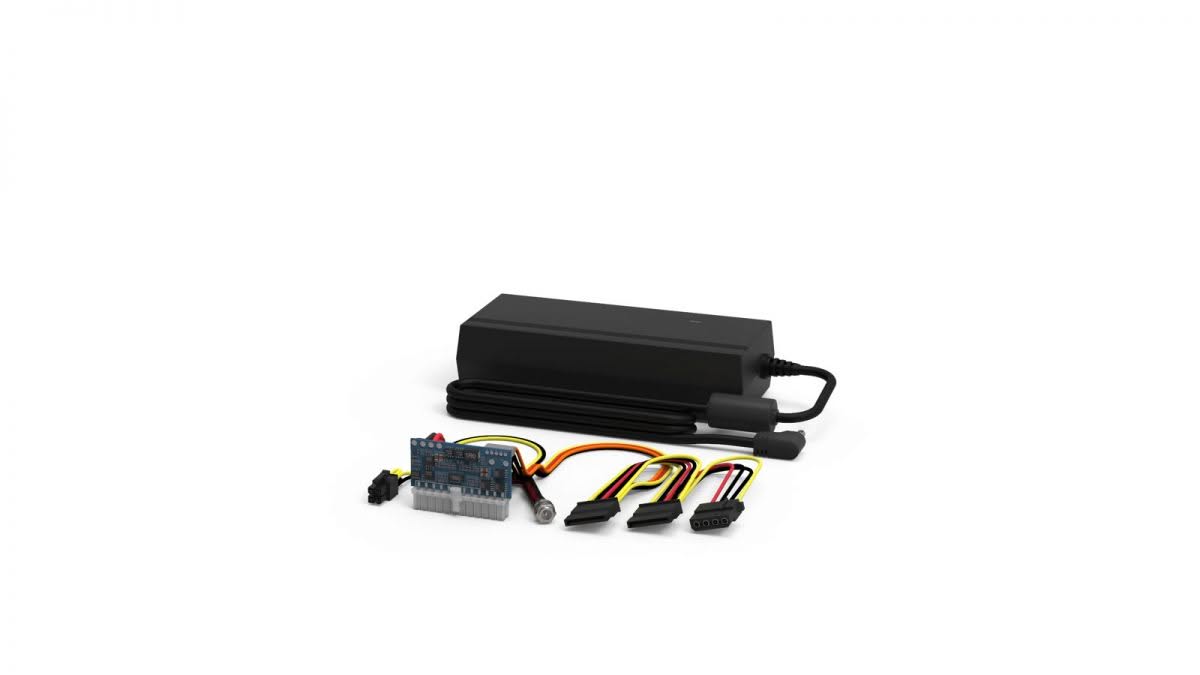

The Nano160 is our 2nd generation ultra compact fanless PSU designed to provide silent ATX power for compact form factor computing. The PSU fits perfectly into all Streacom cases but can also be used as a silent PSU solution for any PC case.

Featuring 160W* of combined total power output, under & over output power protection, short safety protection, and connections for ATX24, SATA, IDE and 4PIN CPU power, the Nano160 is the natural choice for any SFF or quiet system that requires more power than our Nano120. It has also been designed with stability and compatibility at its core, and fully complies with low power (LVDS, ERP/EUP) requirements, having better than 87% efficiency. This makes the Nano160 the defacto performance compact power solution with the perfect balance of size, power output, and stability.
DC to DC PCB
Max Power Output: 160W* Peak
Input Power: 12V DC, 13A
Output Connectors: 1 x 24PIN ATX, 2 x SATA, 1 x IDE, 1 x 4PIN CPU
Power Characteristics: 12V @ 8A, 5V @ 6A, 3.3V @ 2A, 5VSB @ 1A, -12V @ 0.02A
Input Power Cable Length: 400mm
PCB Dimensions: 54 x 26(37**) x 18mm (WxHxD) ** including ATX connector

AC Adapter
Input Power Range: 100-264V AC
Max Power Output: 160W @ 12V Peak
Power Characteristics: <0.35W No Load, <180mV Ripple, 87% + Efficiency, Active PFC >9
Safety Certification: CE, FCC, UL, TUV, CCC
Input Connector: IEC C14 (requires C13 cord)
Output Connector: 5.5 x 2.5mm DC Jack DC Cable Length: 1.2M
External Dimensions: 168 x 71 x 38mm (LxWxH)

Safety Features: OPP, UPP, Short Protection, Compatible with Haswell C6 & C7 Power States

* When choosing components ensure that the total power requirement is not greater than 160W. Please check individual component power requirements and total all components used in the system.
For example, CPU 83W, Motherboard 45W, SSD 5W, Total = 133W
Coming Soon
  • [No Downloads found]
Designed to provide silent ATX power in impossibly small spaces, the Nano150 fits perfectly into all Streacom cases but can also be used as a silent PSU solution for any case.

Featuring 150W* of total power output, under & over output power protection, short safety protection, and connections for ATX24, SATA, IDE and 4PIN CPU power, the Nano150 is the natural choice for any SFF or quiet system.
Nano150 Max Power Output: 150W*
Nano150 Input Power: 12V DC, 12.5A
Nano150 Output Connectors: 1 x 24PIN ATX, 2 x SATA, 1 x IDE, 1 x 4PIN CPU
Nano150 Internal Input Power Cable Length: 400mm
Adapter Input Power: 110-240V AC
Adapter Input Connector: C6 (requires C5 plug)
Adapter Output Connector: 5.5×2.5mm DC Jack Adapter DC Cable Length: 1.2M
Adapter Dimensions: 171 x 87 x 48mm (LxWxH)
Nano150 Dimensions: 54 x 24(33**) x 18mm (WxHxD) ** including connector
Special Features: OPP, UPP, Short Protection, Compatible with Haswell C6 & C7 Power Sates

* When choosing components ensure that the total power requirement is not greater than 150W. Please check individual component power requirements and total all components used in the system.
For example, CPU 65W, Motherboard 45W, SSD 10W, Total = 130W
  • [No Downloads found]
We are currently aware of compatibility issues with the following motherboards and the Nano150 should be avoided if planning to use them:

MSI-FM2-A75IA-E53
Gigabyte Z170N-WIFI

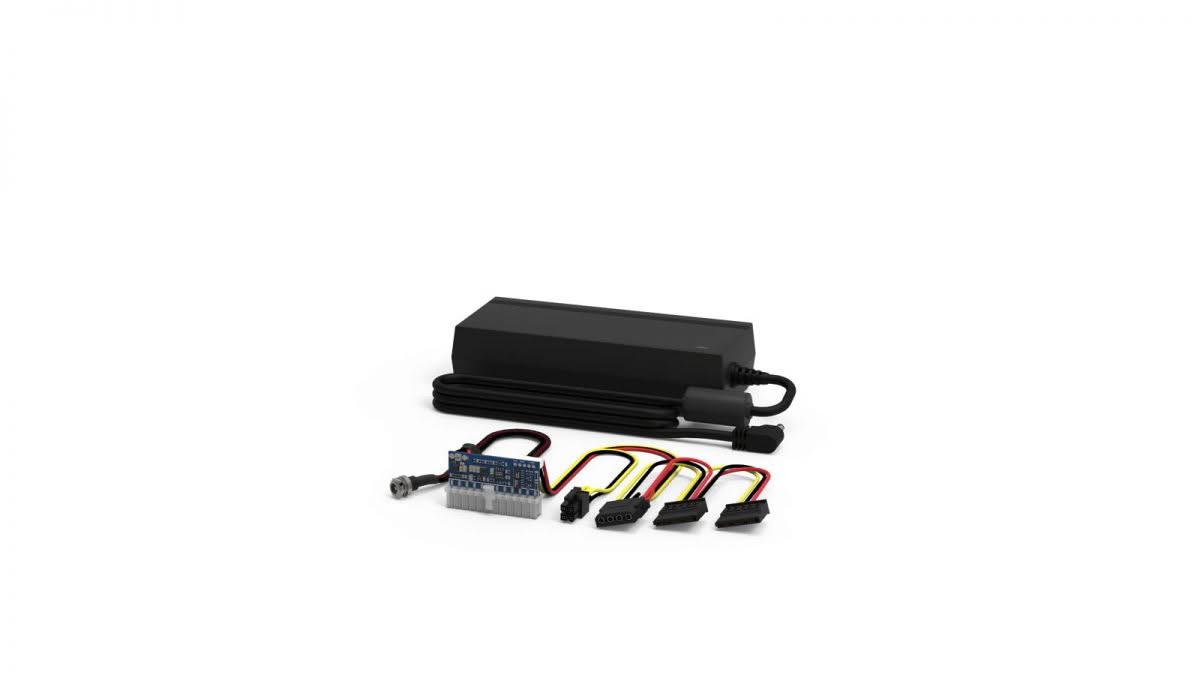

Designed to provide silent ATX power for ultra compact form factor computing, the Nano120 fanless PSU fits perfectly into all Streacom cases but can also be used as a silent PSU solution for any case.

Featuring 120W* of combined total power output, under & over output power protection, short safety protection, and connections for ATX24, SATA, IDE and 4PIN CPU power, the Nano120 is the natural choice for any SFF or quiet system. The Nano120 also fully complies with low power (LVDS, ERP/EUP) requirements and with 87% + efficiency provides a good balance of size, performance, heat and power consumption.
DC to DC PCB
Max Power Output: 120W*
Input Power: 12V DC, 10A
Output Connectors: 1 x 24PIN ATX, 2 x SATA, 1 x IDE, 1 x 4PIN CPU
Power Characteristics: 12 @ 5.5A, 5V @ 5.5A, 3.3V @ 5.5A, -12V @ 0.2A, -5V @ 1.2A
Input Power Cable Length: 400mm
PCB Dimensions: 54 x 24(33**) x 18mm (WxHxD) ** including ATX connector

AC Adapter
Input Power Range: 100-264V AC
Max Power Output: 120W, 12V 10A
Power Characteristics: <0.5W No Load, <120mV Ripple, 87% + Efficiency, Active PFC >9
Safety Certification: CE, FCC, UL, TUV, CCC
Input Connector: IEC C14 (requires C13 cord)
Output Connector: 5.5×2.5mm DC Jack DC Cable Length: 1.2M
External Dimensions: 168 x 71 x 38mm (LxWxH)

Safety Features: OPP, UPP, Short Protection, Compatible with Haswell C6 & C7 Power States

* When choosing components ensure that the total power requirement is not greater than 120W. Please check individual component power requirements and total all components used in the system.
For example, CPU 65W, Motherboard 35W, SSD 5W, Total = 115W
