DA2 V2
PERFORMANCE ITX CASE

The DA2 is a compact ITX case designed to strike a balance between size and compatibility, allowing for high performance components to fit comfortably in a small form factor space.

What truly sets the DA2 apart from other SFF cases is its unique approach to mounting components. It utilizes a rail and bracket system that makes it incredibly versatile, greatly improving the range of hardware and type of systems it can be used for.

Cooling performance was another critical consideration throughout the design process, not only will the DA2 support 145mm tall air coolers or a 280mm radiator, it provides excellent airflow for them to run at maximum efficiency and minimal noise.

Version 2 of the DA2 features the same great design and modularity but with refined venting hole patterns on the back and side panels that greatly improve the airflow potential.
For a full breakdown of all the changes, please see the press release.

The original DA2 (now known as the V1)  launched in 2018 has been superseded by the V2. The DA2 product page can still be found here

Buy

Overview

Form Factor

D/ITX
Small Form Factor (SFF), mini tower, Mini-ITX & Mini-DTX motherboard support

CPU Cooler

145mm
145mm maximum height of Tower Cooler

Expansion

330mm
Dual slot, maximum card size of 300 x 150 x 50mm

Radiator

280mm
Support for 120 to 280mm radiators, total thickness of 80mm including fans

Case Fan

200mm
200mm max on vertical brackets, 120mm max on horizontal brackets, 92mm on rear panel, fans not included

PSU

A+SFX / L
SFX, SFX-L and ATX (limits expansion card length to 220mm)

Ports

Modular I/O
Front USB Type-C 3.0
Optional 3.1 Gen2 cable and
Type-A 3.0 Module

Dimensions

17.5ℓ
340 x 286 x 180mm
(D x H x W)
17.5ℓ volume

Material

AL6063
Aluminium 6063 for all outer panels & rails, steel brackets

Finish

Sandblast
Sandblast and anodized surface treatment, available in black or silver

RGB

NO
Seriously? NO! We feel sad that this has become a spec in the industry 🙁

Weight

3.9kg
3.9kg NET
5.1kg GROSS
(packed weight)

Model

Black
SKU: ST-DA2B-
EAN: 8718469091287

Model

Silver
SKU: ST-DA2S
EAN: 8718469091270

Features

A DIFFERENT APPROACH TO CONSTRUCTION
A DIFFERENT APPROACH TO CONSTRUCTION
Whilst many would assume that every aluminum case is constructed in the same way, the DA2 utilizes a fundamental different approach to the construction. The wrap around outer shell is produced from a single sheet of aluminum (nothing new there) but the frame is attached without any rivets of welds allowing for a higher quality sandblast and anodized surface finish compared with the brushed or coated surface more commonly used.
BEYOND THE GENERIC SHOE BOX DESIGN
BEYOND THE GENERIC SHOE BOX DESIGN

No doubt the oblong rectangular box is the most space efficient shape for components, but wouldn’t it be nice to sacrifice some space for style?
We think yes, and the characteristic openings at the top and bottom of the case serve as additional airflow surfaces whilst maintaining a minimalist clean exterior panel that is easy to clean.

ATTENTION TO DETAIL
ATTENTION TO DETAIL
What differentiates a good case from a premium case? These subtle difference are often overlooked, overshadowed by the focus on technical specifications. Not all aluminium finishing is the same, not all PCI mounting brackets will be CNC’d from a solid block, not all cases will make the effort to ensure screws are only visible on the back and the idea of a modular front I/O that can be changed to suit your needs to future ports is far from commonplace.
HELLO AIRFLOW
HELLO AIRFLOW
How about this for an idea, a case that considers cooling might actually be more important than RGB lighting. There are of course situations when lighting can work really well to enhance a products aesthetic, but its an unfortunate state when they come at the expense of performance and basic functionality. The DA2 upper and lower openings in the frame are a design aesthetic but they are also there to improve cooling and avoid the issue most cases suffer from, lower intake airflow restriction. That combined with the over 2000 precision holes on the back and side panels, plus the ability to support multiple fans in virtually any location, results in excellent airflow and cooling performance.

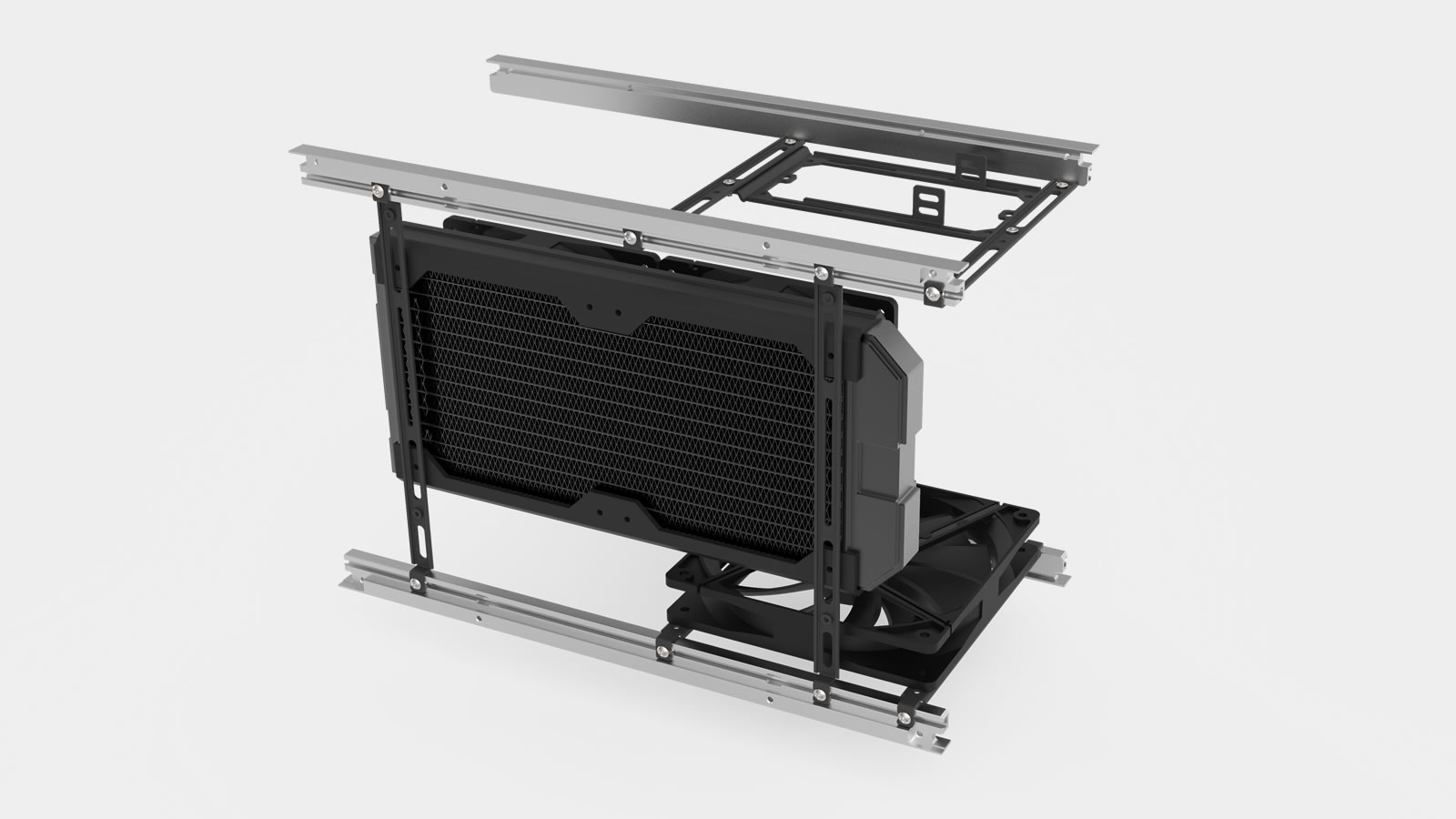

VERSATILITY WITH UNIVERSAL BRACKETS
VERSATILITY WITH UNIVERSAL BRACKETS
The DA2 features an integrated track that runs along the frame of the case which is used to secure the brackets. The brackets themselves are designed to be universal, allowing virtually any hardware to be fitted to them. This combination of universal bracket and adjustable placement gives incredible versatility to the type and position of hardware that cab be fitted.

Reviews & Media Coverage

View All
PCMag
Written Review

The DA2 is a rare breed of mini-ITX case that synthesizes clear, clean aesthetics with ease of build, installation flexibility,.....

Hardwareluxx
Written Review

Streacom DA2 is a special mini-ITX case: compact, very high quality and flexible in configuration thanks to a special mounting.....

Hardwareluxx
Written Review

Streacom entwickelt sein Premium-Mini-ITX-Gehäuse weiter. Das DA2 V2 unterscheidet sich äußerlich kaum von der ersten Version, wurde im Detail aber.....

FunkyKit
Written Review

The Streacom DA2 V2 is a top-quality, well-designed chassis that has a lot to offer. Computer enthusiasts and those who.....

HWT
Written Review

I know the design is a personal preference, but in my view, this case looks and is built quite nice......

Tek Syndicate
Video Review

The Best Mini ITX/DTX Case We’ve Seen?

NoNonsensePC
Video Review

Streacom DA2 – Even More Versatile

Oliur
Build Video

the quality, the materials, its just fantastic …… the build quality is unreal

NoNonsensePC
Video Review

Finally an SFF case worth my MONEY!

KitGuru
Media Coverage

Filling that Streacom pretty much to the max ……

Linus Tech Tips
Video Review

it’s incredibly modular, with a stunning minimalist design that would make even Jony Ive proud

Hermitage Akihabara
Written Review

Unlike other products, the “DA2” makes it possible to flexibly change the style by freely changing the style with the.....

Singularity Computers
Video Review

While everybody else is focused on plastic, punched steel and RGB, Streacom is building cases completely from Aluminium. For me,.....

Hardwareluxx
Written Review

Insgesamt überzeugt das Streacom DA2 als ausbalanciertes und edles Premium-Mini-ITX-Gehäuse. Weil man dank innovativer Montagelösungen den verfügbaren Platz optimal ausreizen.....

Hardwareluxx
Video Review

ausgepackt & angefasst: Streacom DA2 – edles und innovatives Mini-Gehäuse

Optimum Tech
Video Review

If Apple ever built an enclosure for aftermarket Windows ITX systems I’d say this would be pretty dam close

Hardware Canucks
Media Coverage

One of the most elegant ITX cases with an innovative mounting system … the flexibility and what you can use.....

SFF Network
Written Review

Overall, the Streacom DA2 is a case I can recommend to anyone looking for a mid-sized SFF case with oodles.....

Hardware Canucks
Video Review

The ULTIMATE Mini ITX Case? The Streacom DA2 may just be the most versatile SFF mini ITX PC case we’ve.....

Hardware Canucks
Media Coverage

The Streacom DA2 ITX case may be one of (if not THE) best PC cases we saw at Computex 2018......

    Support

    • Why are no fans included with the case?
      Streacom doesn't design or manufacture fans and therefor we would simply be sourcing another supplier's fans and charging you extra for that whilst also forcing our own choice of make and model instead of leaving that to the individual
    • How many dust filter side panel nets are included?
      The DA2 is supplied with a single side dust net, not both sides. The reason being that most configurations will use one side for exhaust and using the net will greatly reduce the airflow. If you do require a second net, they can be purchased directly from us.
    • Can I purchase V2 parts for my V1 case?
      All of the V2 parts are compatible with V1 cases, so yes, you can. Please contact support and let us know what you need.
    • Is it possible to purchase extra brackets?
      Yes, it is possible to purchase additional brackets, just get in touch and we can arrange that.
    • What fans can I mount on the Performance Acrylic Panels
      Any 120 or 140mm fans can be mounted to the panels using the included silicon mounts, but if there is any hardware mounted near the top or bottom of the case, you will need to use slim fans that don't protrude past the frame, so we would recommend using ultra-slim (13-14mm) 140mm fans. For reference, here are some examples of fans that can be used - Cryorig XT140 Prolima Ultra Vortex 14 Thermalright TY-14013
    • Is it possible to fully remove the acrylic panels to allow larger cards to fit?
      It is possible to fully remove the acrylic panels to allow more space for thicker GPUs. This will also provide better cooling as there is less airflow restriction but at the expense of air filtration.
    • Can I use a 2.5 slot GPU or one that is slightly thicker than 50mm in the DA2?
      The exact space between the PCI-E slot and the lower acrylic panel is 56mm. We give the dimension of 50mm to allow some space for manufacturer tolerance and to allow some space for airflow.
    • What if I have a question that is not listed?
      If you can't find the information you need, please send us a message using the 'Get in Touch' link at the top right of the page, choose the appropriate department and we will respond with the relevant information.
