NC1
Fanless NUC Case

Designed for the Next Unit of Computing (NUC) platform, the NC1 delivers silent computing in an impossibly small package.


The case is modular, meaning that the front, rear and CPU cooler can be replaced to accommodate future NUC motherboards and its acrylic sides allow for internal WiFi (using our InFi2 Antenna) and Bluetooth signals to propagate, keeping the outside sleek and clutter-free.


The optional VM1 VESA compatible mount allows it to be hidden behind the monitor, but with looks like this, we think most people will have it on display.

Compatible with NUC Model
D33217GKE , DCP847SKE

Compatible with NUC Model
D33217CK

Compatible with NUC Model
DCP847SKE

Compatible with NUC Model
D34010WYB , D54250WYB

Overview

Form Factor

Intel NUC
4x4 Next Unit of Computing

CPU Cooling

20W
Maximum recomended TDP

Expansion

Onboard
Motherboard sockets only, no external expansion

Drives

Onboard
mSATA slot

PSU

External
AC Adapter, Compatible with NUC

Ports

Front + Back
Determined by NUC model

Dimensions

0.81ℓ
150 x 112 x 48mm (W x D x H)
0.81ℓ volume

Material

AL6063
Aluminium 6063 for all outer panels & rails, steel brackets

Finish

Sandblast
Sandblast and anodized surface treatment, available in black or silver

Weight

0.65kg
0.85kg NET
1.1kg GROSS
(packed weight)

Model

GK
SILVER
SKU: ST-NC1S-GK
EAN: 8718469090648

BLACK
SKU: ST-NC1B-GK
EAN: 8718469090655

Model

CK
SILVER
SKU: ST-NC1S-CK
EAN: 8718469090662

BLACK
SKU: ST-NC1B-CK
EAN: 8718469090679

Model

RK
SILVER
SKU: ST-NC1S-RK
EAN: 8718469090723

BLACK
SKU: ST-NC1B-RK
EAN: 8718469090716

Features

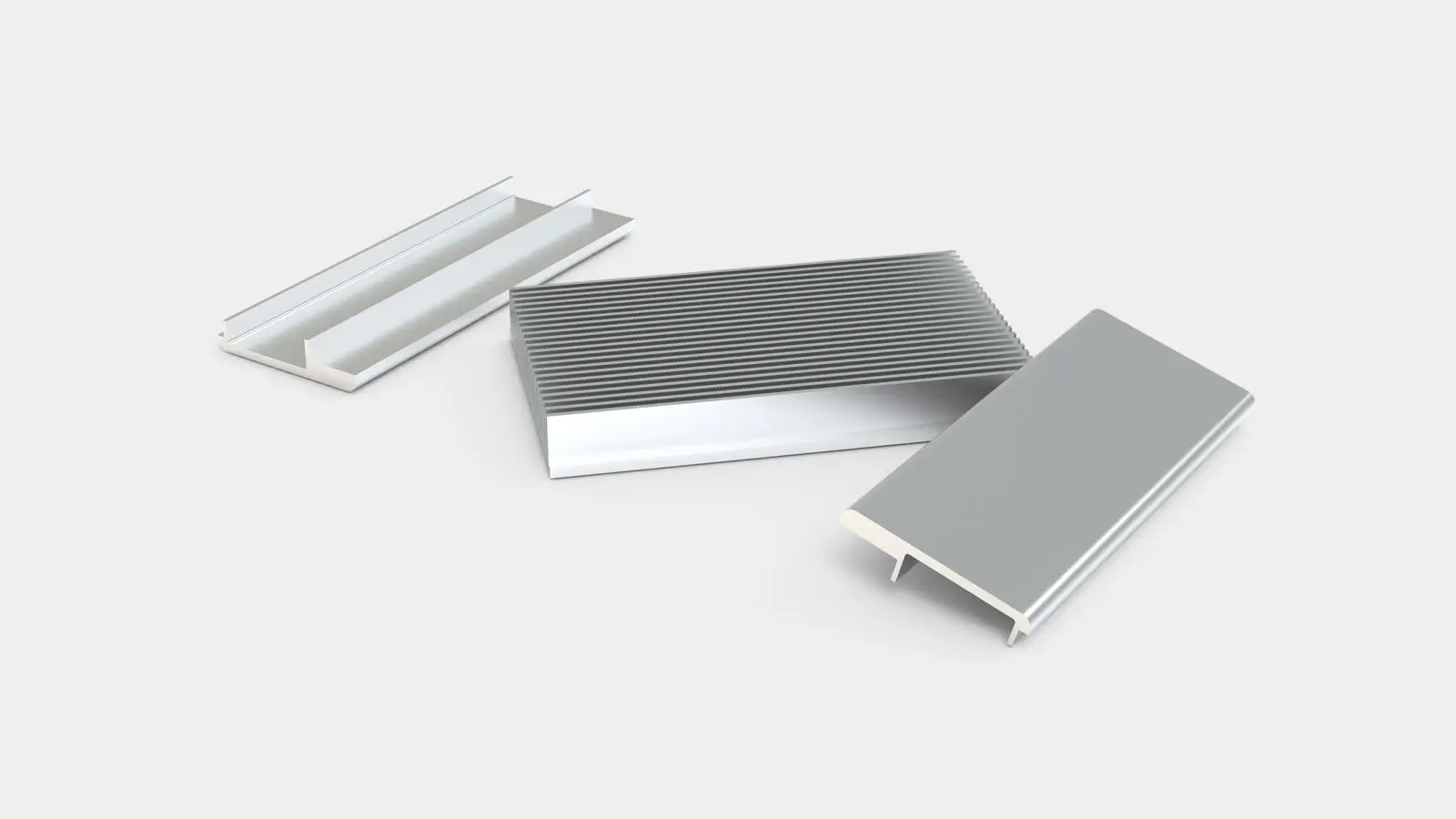

PRECISION MILLED FROM CUSTOM EXTRUSION PROFILES

The NC2 is constructed from custom extruded aluminium profiles that are then precision milled. This gives an incredibly high quality feel and finish whilst also allowing for easy customisation and adjustments of the cutouts to match different NUC motherboard models.

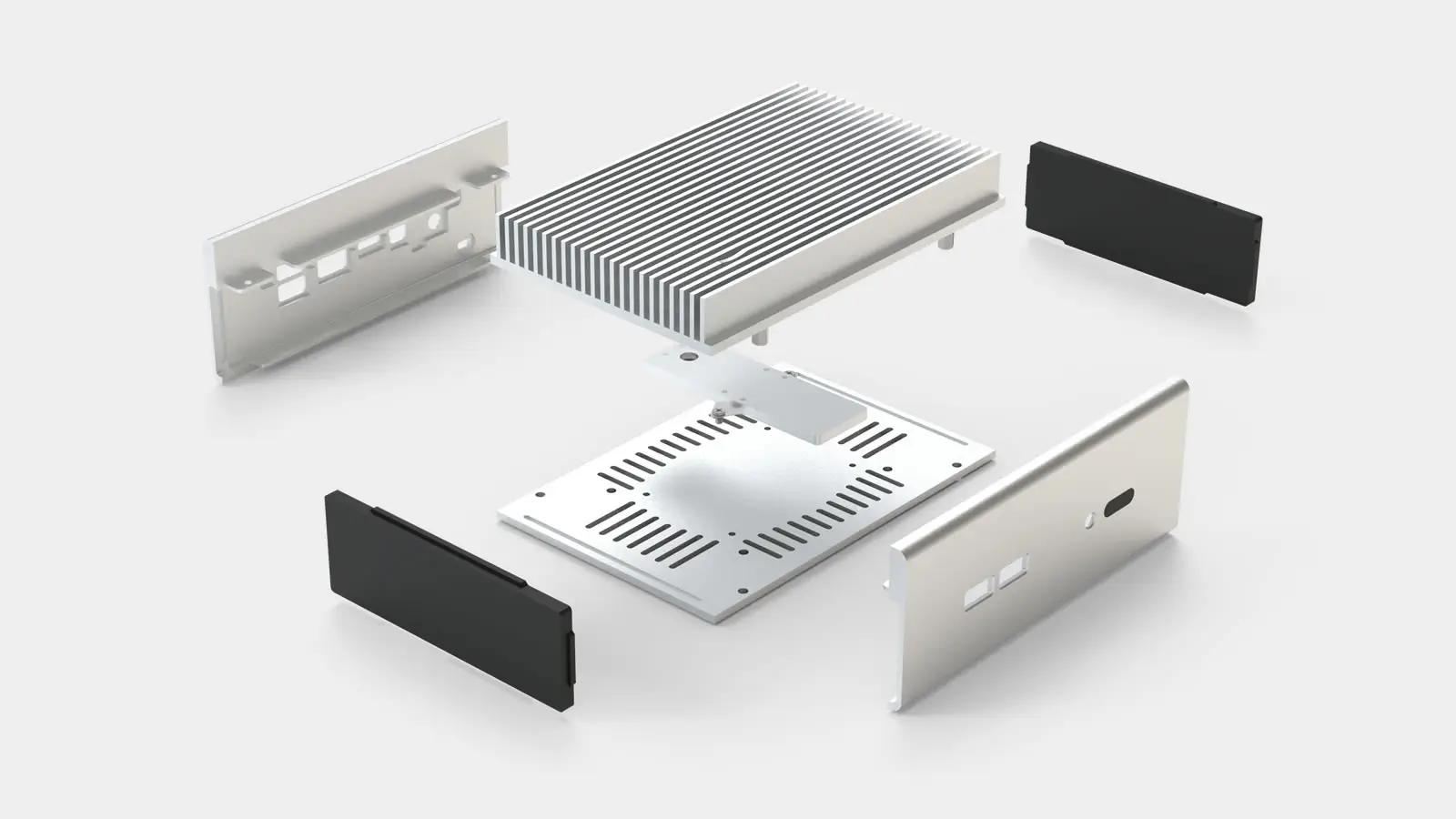

VERSATILE & MODULAR ASSEMBLY

There is not much to the NC2, its an incredibly simple design yet it offers many possibilities to suit different applications and NUC motherboard models. Its modular design makes it easy to customise and the acrylic sides provide permeability for internal radio devices such as WiFi and Bluetooth.

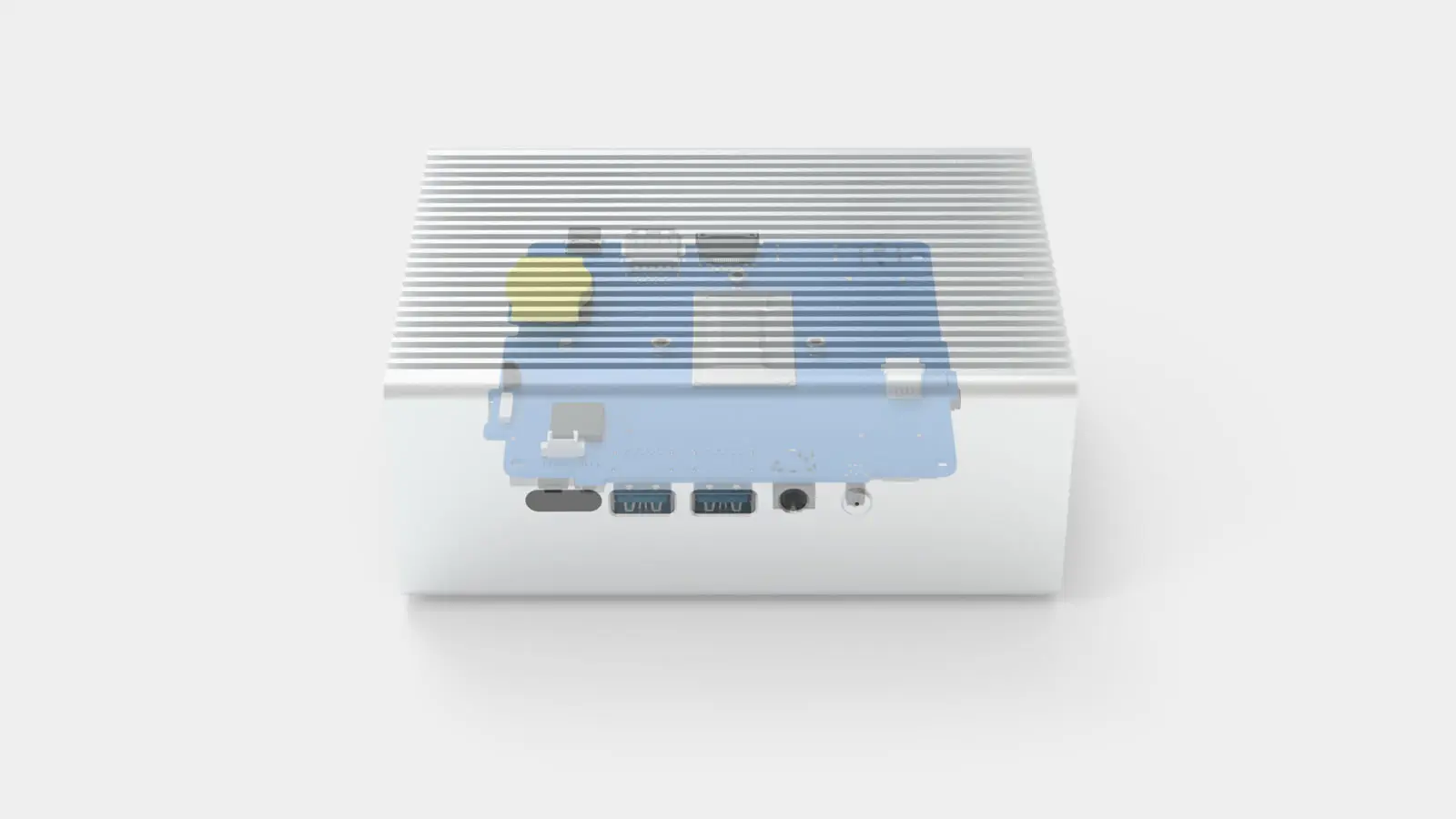

IN KEEPING WITH NUC DESIGN GOALS

The Next Unit of Computing aka ‘NUC’ was designed to offer desktop performance in an ultra compact package, a form factor noticeably smaller than ITX. The NC2 not only makes the NUC silent but just as importantly maintains a key purpose of the NUC platform by maintaining the ultra compact footprint.

Reviews & Media Coverage

TechPowerUp
Written Review

Out of the handful of NUC cases out there, the Streacom NC1 is certainly one of the most compact passive.....

Blog HTPC
Written Review

STREACOM es una marca que por encima de todo cuida el diseño de todos sus productos, externamente la NC1 es.....

    Support

  1. Is it safe to use a CPU with the same maximum specified case TDP?
    In the past, CPU TDP was a measure of the maximum required cooling performance of a cooler to maintain the normal operating temperature of the CPU. With the advent of performance “boosting” technologies, the specified TDP is no longer an accurate representation of the required cooling performance, but more a baseline reference. When these technologies are enabled, CPUs can boost well above the specified TDP rating and they try to take advantage of thermal overheads. It is therefore important when choosing a CPU for a fanless case to consider the actual maximum TDP that the CPU can output. Wherever possible, aim for a CPU TDP that is below the case TDP rating or consider BIOS settings that will limit the CPU to the maximum TDP supported by the case.
  2. Do you have any updated NC2 models for newer generation NUCs?
    As the NC2 is no longer sold directly to the consumer market, no updated versions are listed, we do however manufacture custom solutions using the NC2 with updated port cutouts and cooler mounting for current generation NUCs
  3. Is the NC2 still in production?
    Yes, we still manufacture the NC2 but currently it’s only available for B2B customers and with minimum orders quantities.
  4. Can I get a customised version of this case made?
    Whilst we are considered in many ways a boutique manufacturer, its not possible for us to produce customised versions of our cases as one-offs or in limited numbers to cater for individual requirements and modifications. We are however able to offer a customisation service for businesses (OEM / ODM) and depending on the product and type of modification, this becomes viable at relatively low volumes.
  5. What if I have a question that is not listed?
    If you can’t find the information you need, please send us a message using the ‘Get in Touch’ link at the top right of the page, choose the appropriate department and we will respond with the relevant information.
  6. There are currently no downloads available for this product. If there is something missing, please get in touch and we do our best to make it available.
