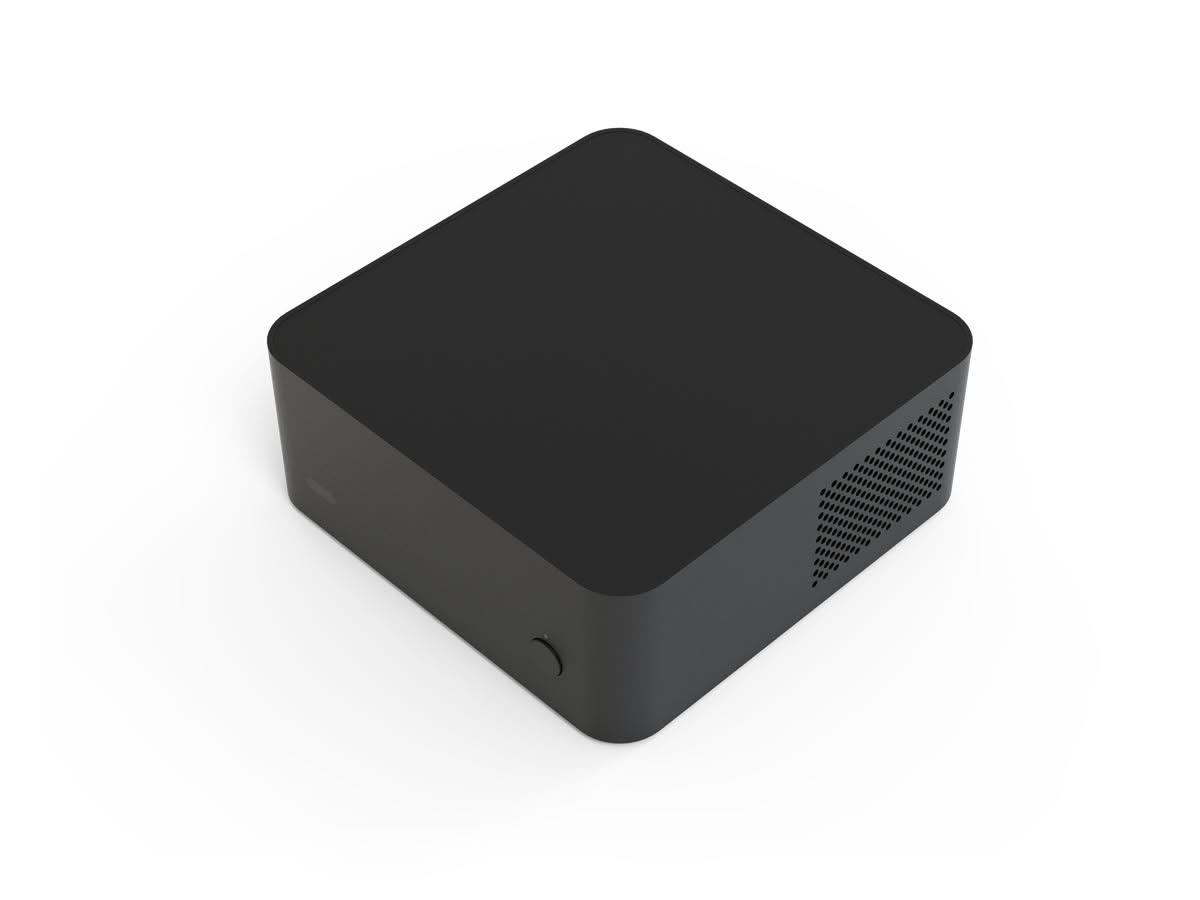

The F1C is an ultra-compact mini-ITX chassis made from a one piece premium aluminium extrusion and sandblasted to perfection. With its minimalist design and small footprint, it can be placed anywhere and looks great in any home environment.

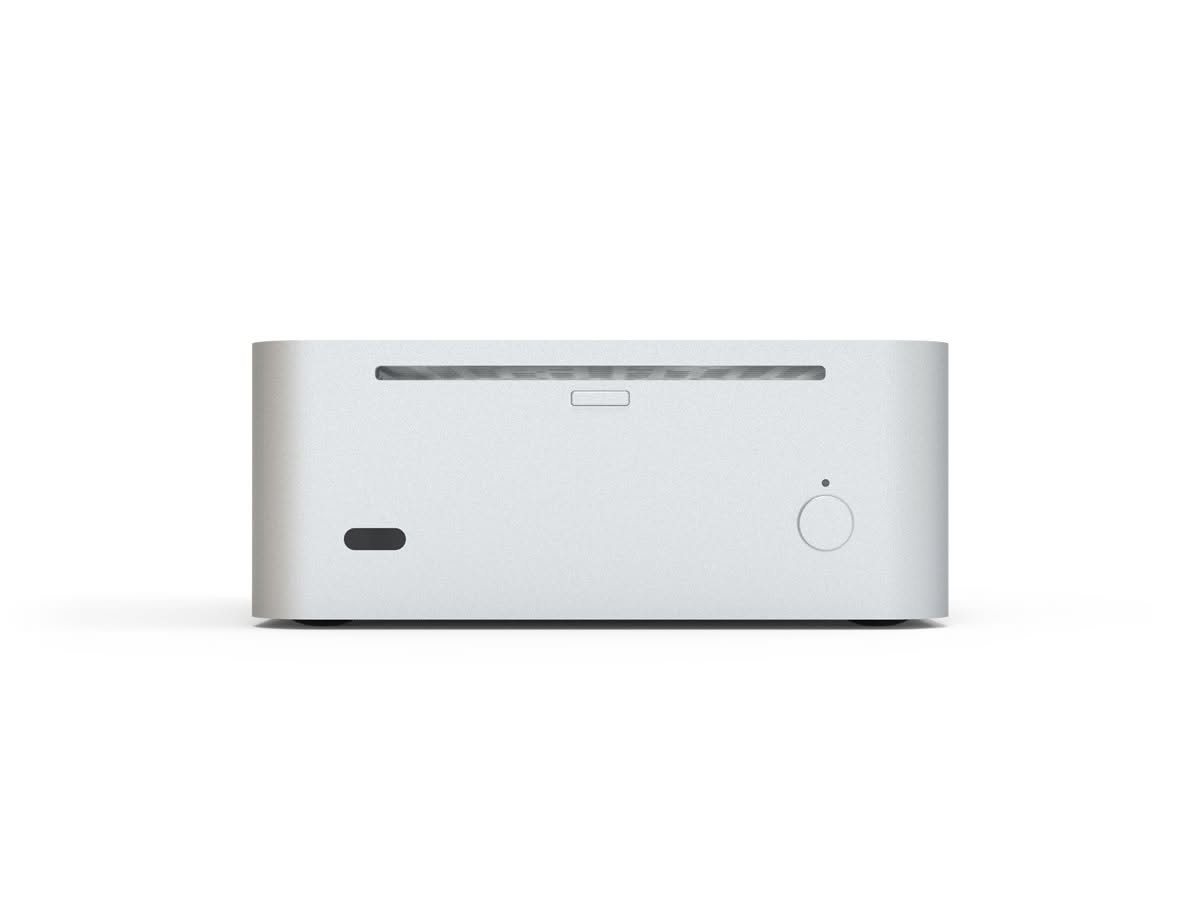

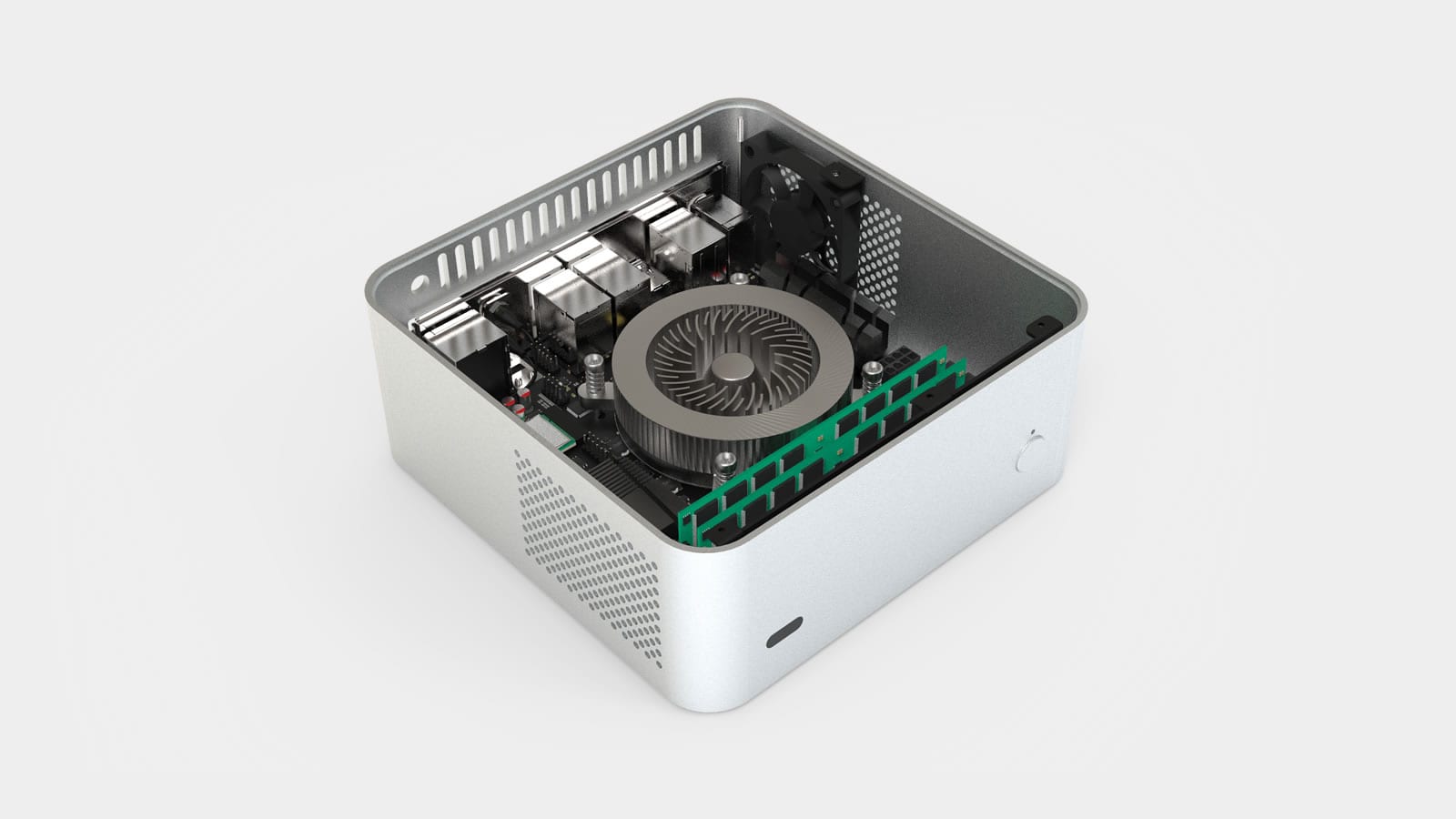

Featuring the same ultra-compact design as the original F1C, the F1C Evo has been created to improve compatibility and make assembly easier than ever. The one piece extruded aluminium body shares the same sandblast finish as the rest of the Evo range along with other refinements such as wider IR window, soft touch power button, universal eject button and a re-engineered top panel assembly system. The re-designed internals now allow for an additional 2.5” drive and larger fan whilst still maintaining the minimalist and tiny footprint that allows the F1C Evo to fit perfectly into any environment.
The original F1C (now known as the V1) launched in 2011 and has been superseded by both the V2 (Evo). The product page has been updated to show the current production version but the reviews of the V1 are still available below. Most if the changes to the V1 were internal to improve hardware compatibility .
Overview
-
Form Factor SFF
Ultra Compact Desktop Small Form Factor
-
Motherboard ITX
Mini-ITX Only
-
PSU Compatability Nano
Nano (AC Adapter + Internal DC PCB)
-
Drive Support 2.5" + 3.5"
1 x 2.5" + ( 1 x 3.5″ or 2 x 2.5″ )
-
Optical Drive 12.7mm
OPT version support 12.7mm slot loading drive
-
I/O Ports None
No Additional Ports
-
Size 2.99ℓ
197 x 197 x 77mm (D x H x W), 2.99ℓ volume
-
Weight 1.1kg
1.1kg NET, 1.3kg GROSS (packed weight)
-
CPU Cooler 55mm*
*With 1 x 2.5", 42mm With 2nd 2.5" Installed, 26mm with 3.5″ Installed
-
CPU Cooler (OPT) 40mm*
*With 1 x 2.5" Installed Vertically, 30mm with 2nd 2.5" Installed Below ODD
-
Expansion Slot None
No Available Mounting
-
Case Fan 60mm
1 x 60mm or 1 x 40mm, Max Thickness 10mm
-
IR Module Optional
Front Panel IR Window, Support for Flirc Module
-
Material AL6063
Sandblast & Anodise Surface Treatment
-
Silver SKU ST-F1CS-EVO
EAN: 8718469090303. WS- SKU: ST-F1C-EVO, EAN: 8718469090693
-
Black SKU ST-F1CB-EVO
EAN: 8718469090297. WS- SKU: ST-F1CB-WS-EVO, EAN: 8718469090686
Features
EXTRUDED, PRECISION MILLED, UNIBODY DESIGN

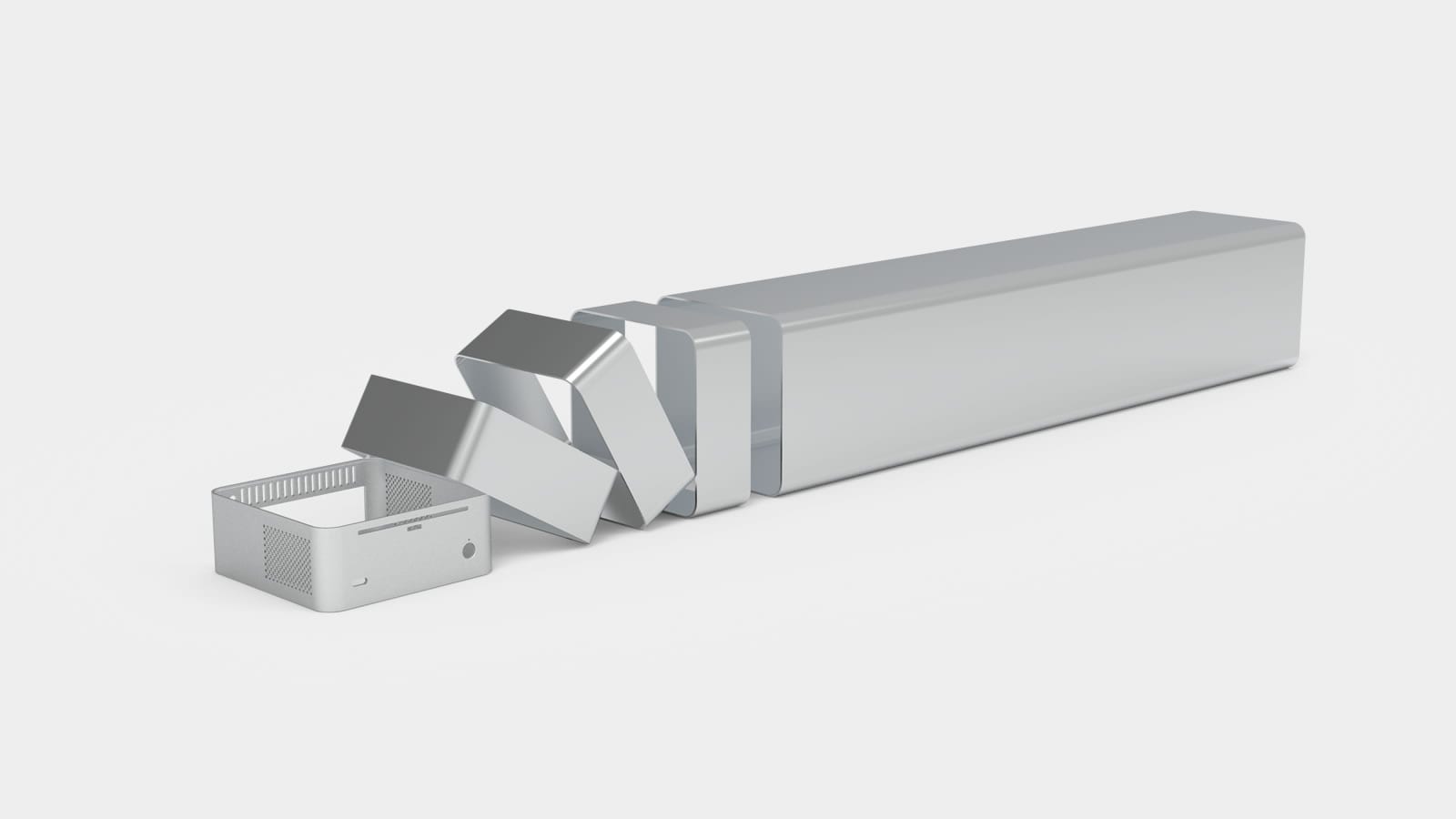

Unlike the majority of cases on the market (even the aluminium ones) the F1C body is constructed for a single extruded, sliced, precision milled, polished, sandblasted then finally anodised part. This give the F1C a unique seamless look and premium finish.
IMPOSSIBILITY COMPACT DESIGN

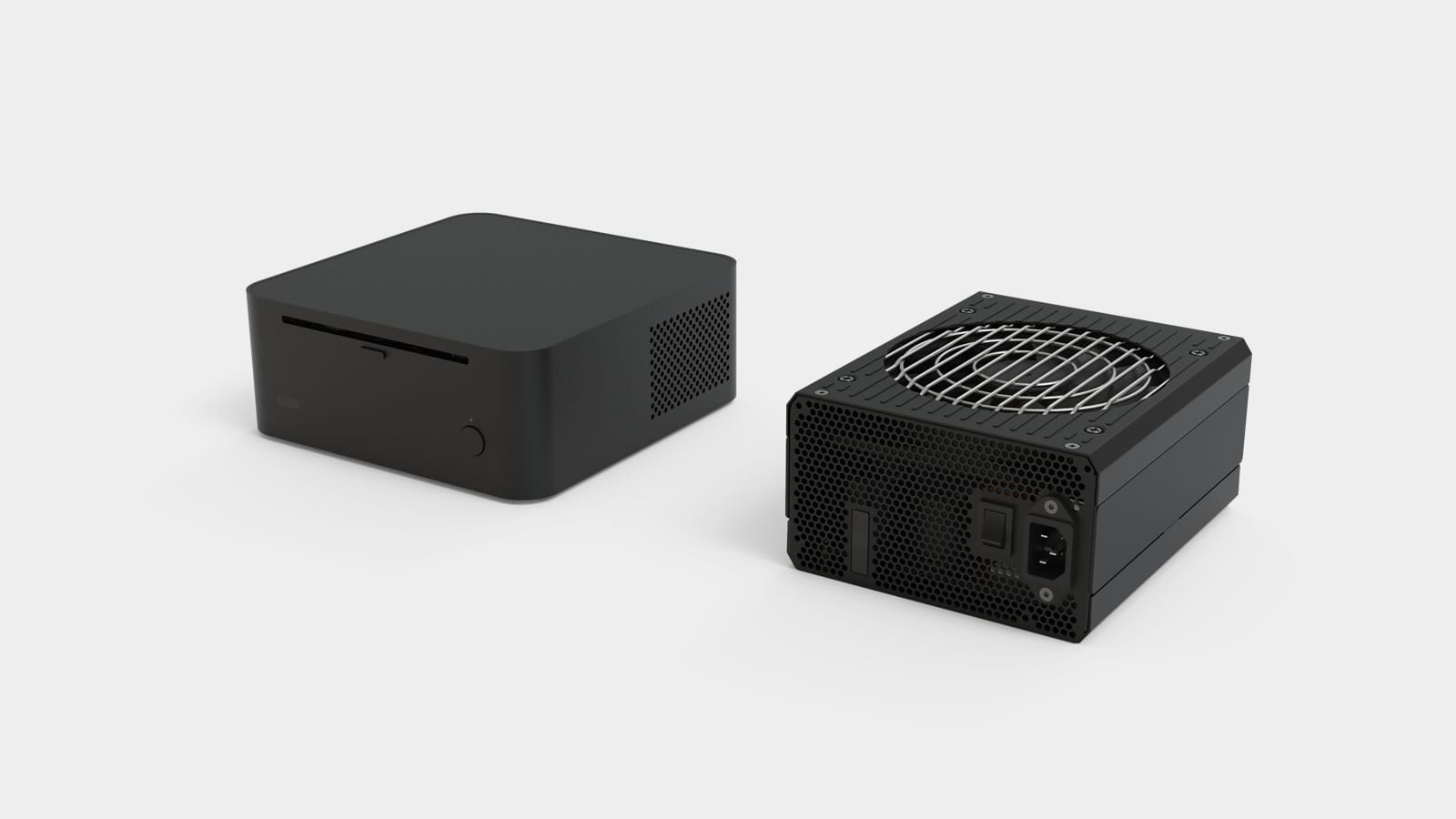

With a volume of only 3l and measuring 197x197x77mm, its very hard to appreciate just how small the F1C. We sometimes get asked if its possible to use a normal ATX PSU inside the F1C, and why we insist on requiring a NanoPSU …. Hopefully this picture will put things in context.
BALANCED CHOICE OF STORAGE

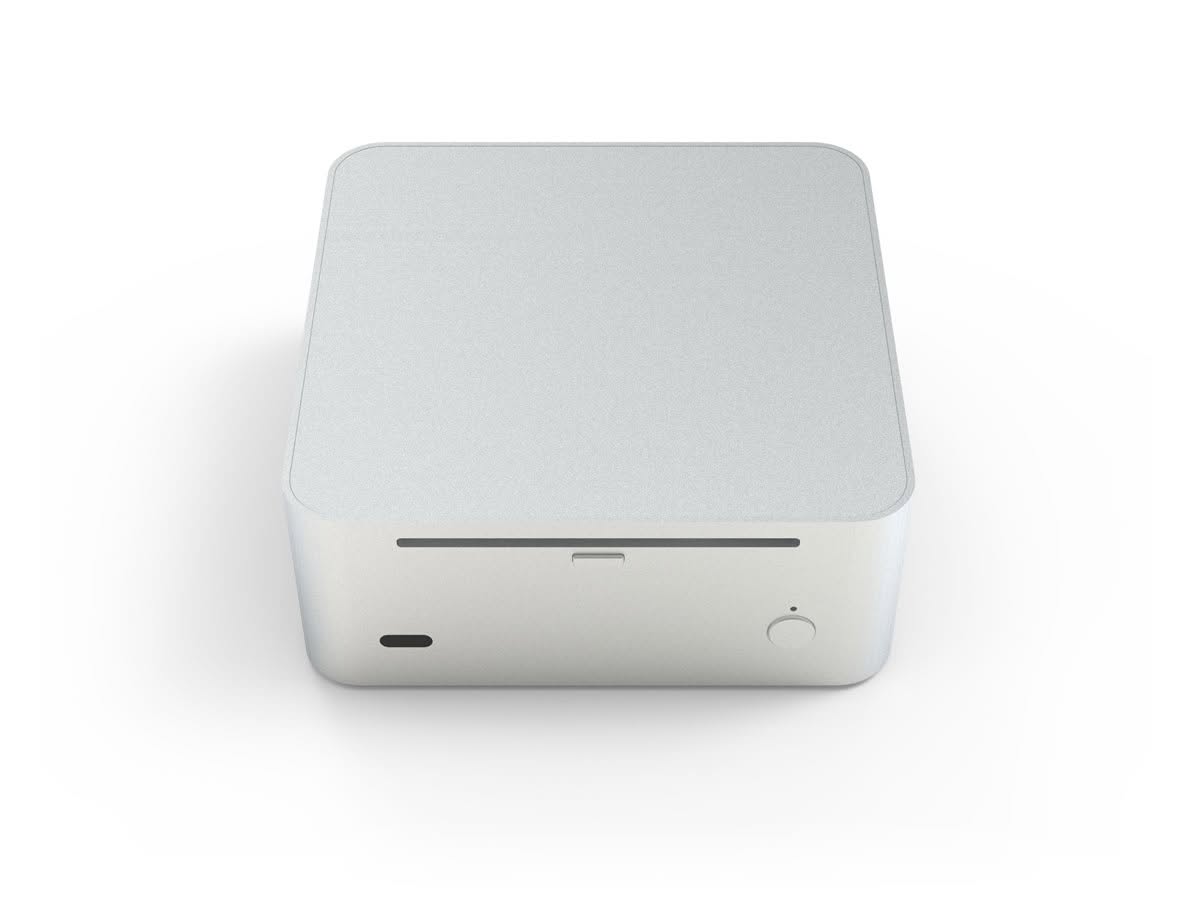

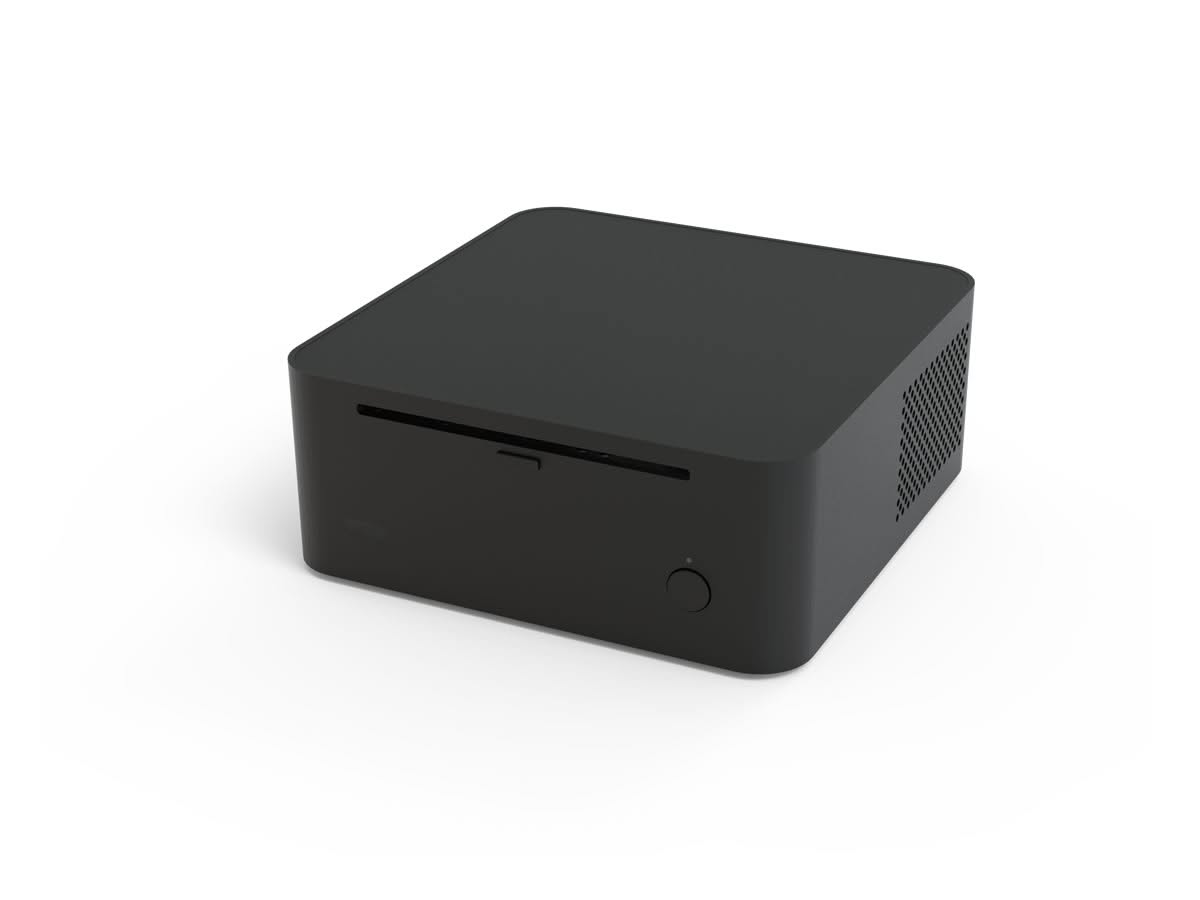

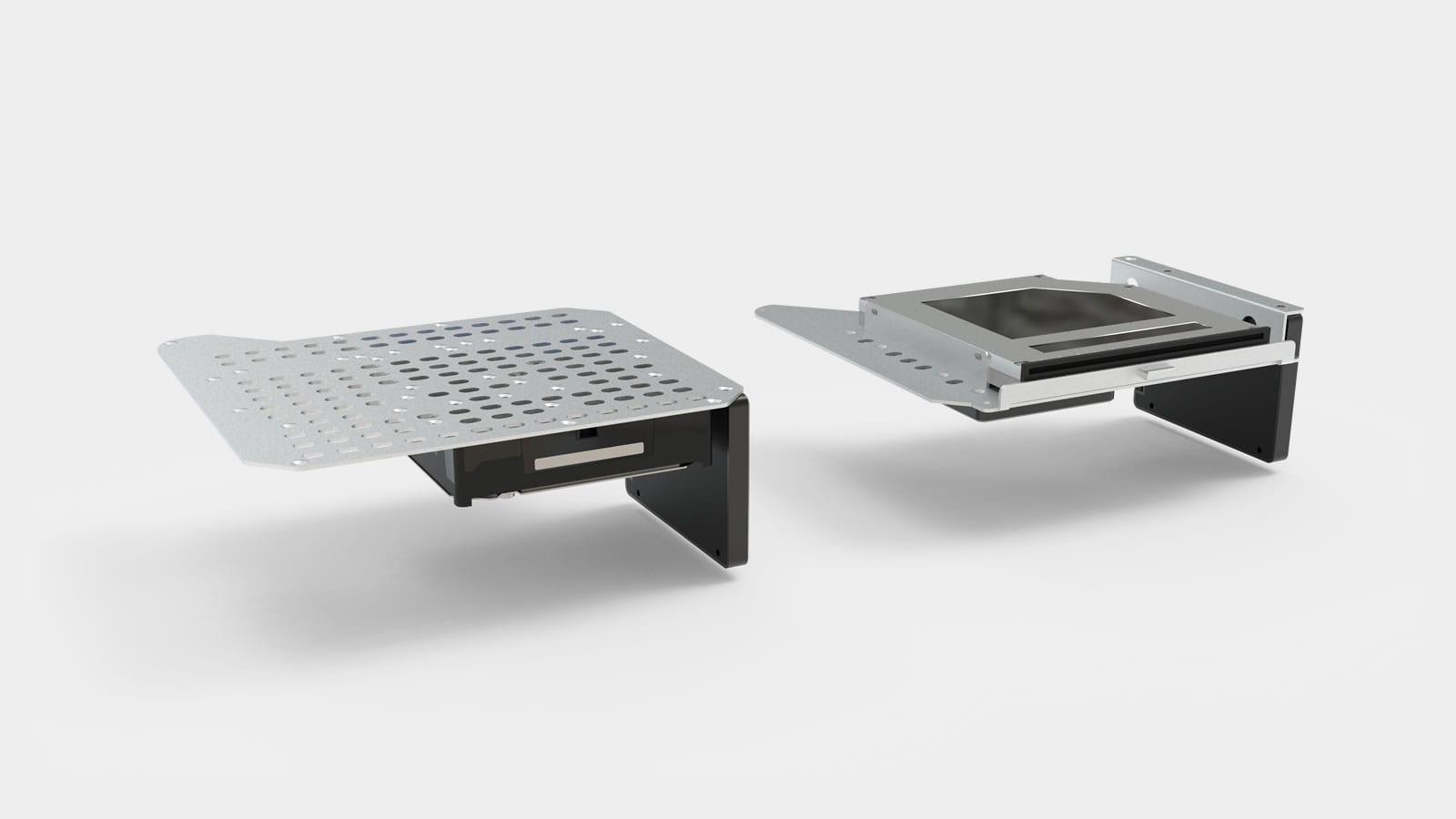

The F1C is available in standard or optical version both of which allow for a minimum of a single 2.5″ drive. The OPT version support a slot loading optical drive whilst the standard version can even accept a 3.5″ drive with the use of a low profile CPU cooler.
Reviews & Media Coverage
Support
- Why are no fans included with the case?Streacom doesn't design or manufacture fans and therefor we would simply be sourcing another supplier's fans and charging you extra for that whilst also forcing our own choice of make and model instead of leaving that to the individual
- Does the F1C support an expansion card?The F1C is extremely small, there is no room for an expansion slot or card.
- Is there an Alpha version of the F1C?The newest version of the F1C is the Evo, no Alpha (or V3) revision was made
- Can I get a customised version of this case made?Whilst we are considered in many ways a boutique manufacturer, its not possible for us to produce customised versions of our cases as one-offs or in limited numbers to cater for individual requirements and modifications. We are however able to offer a customisation service for businesses (OEM / ODM) and depending on the product and type of modification, this becomes viable at relatively low volumes.
- What if I have a question that is not listed?If you can't find the information you need, please send us a message using the 'Get in Touch' link at the top right of the page, choose the appropriate department and we will respond with the relevant information.
