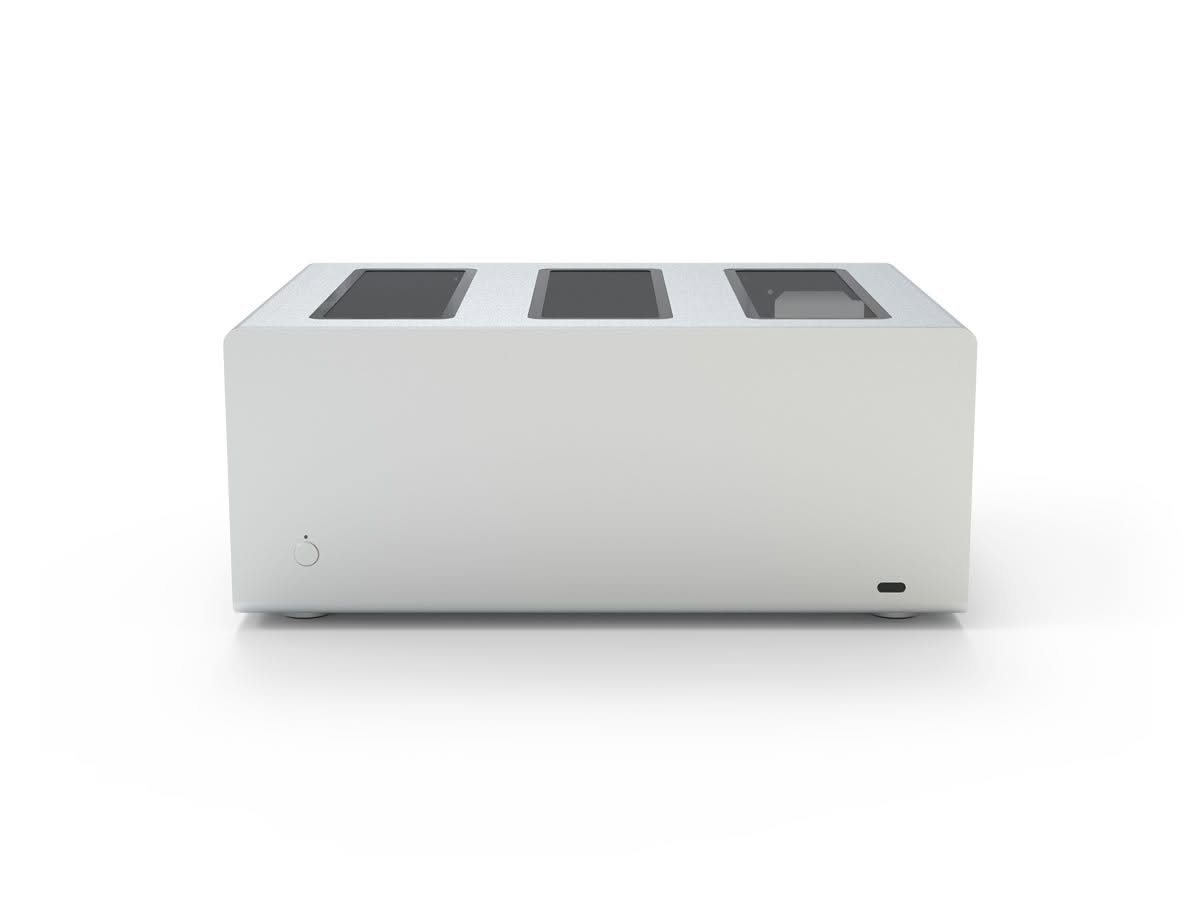

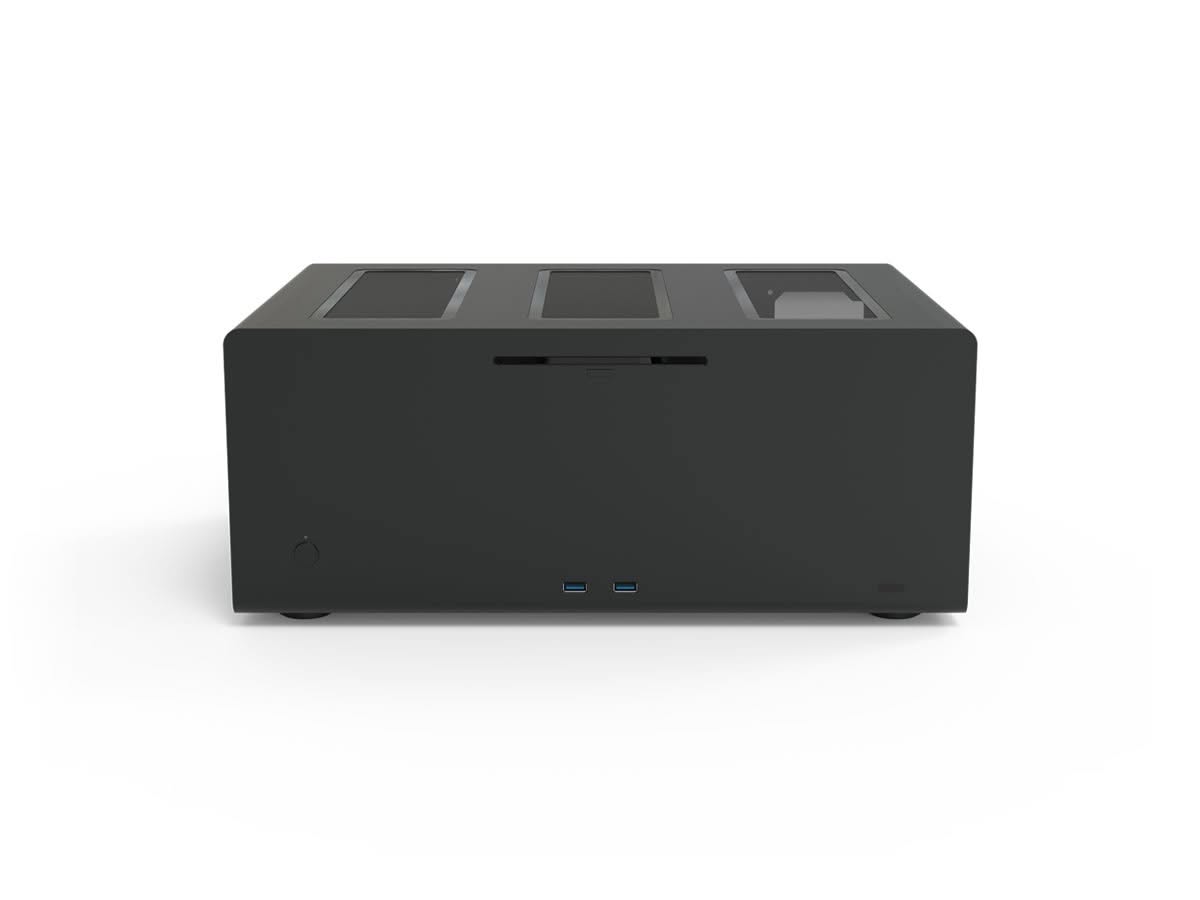

The F12C is our first case designed to accept all standard ATX hardware, but of course being Streacom, the design is anything but standard. The ultra-minimalist exterior is made from 4mm thick premium grade extruded aluminium panels which are sandblast finished to create this simple but timeless design.
The unique design isn’t just skin deep, we have developed a new drive and fan mounting system that does away with traditional fixed location bays, making this case incredibly adaptable and configurable. Drives and fans can be mounted anywhere along both sides of the case and at virtually any orientation. This allows you to mix, match and perfectly position drives and fans for optimal cooling and hardware compatibility.

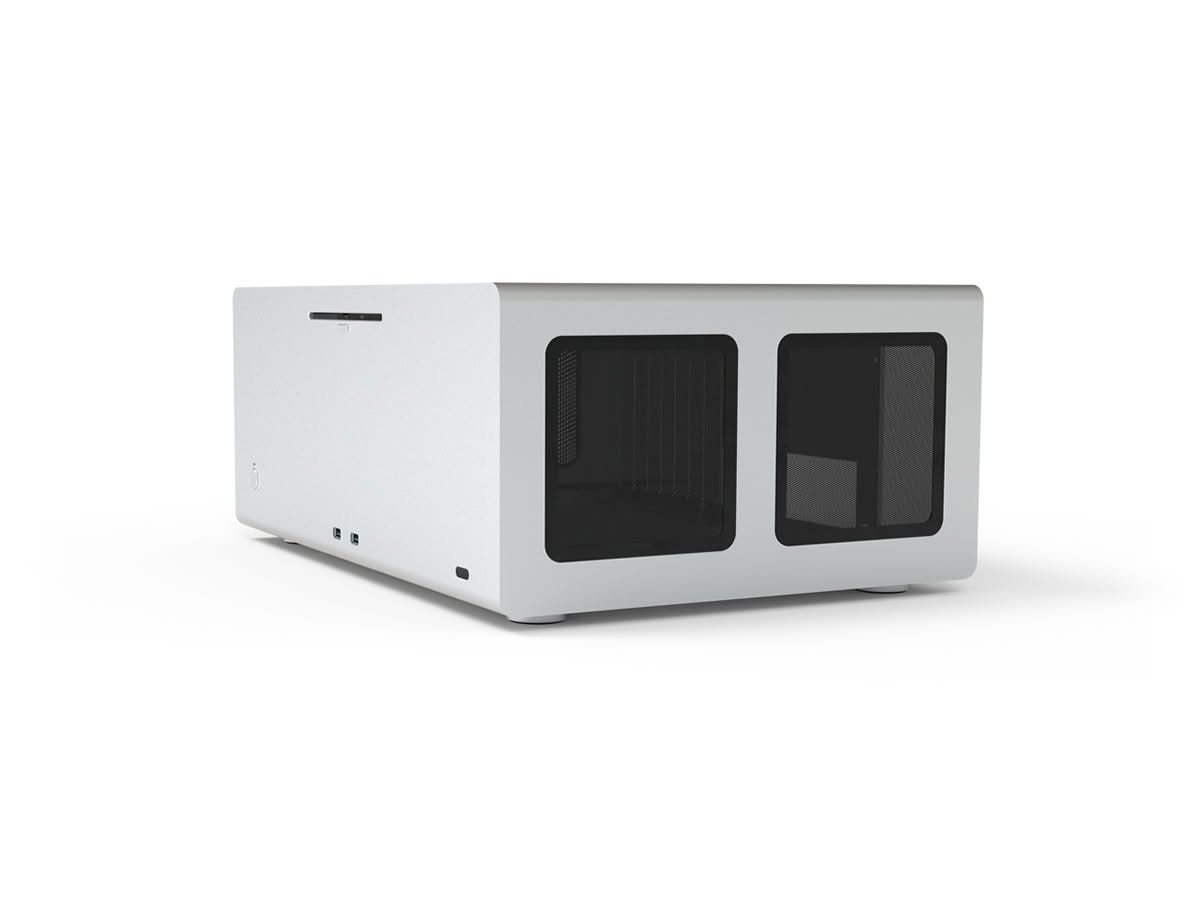

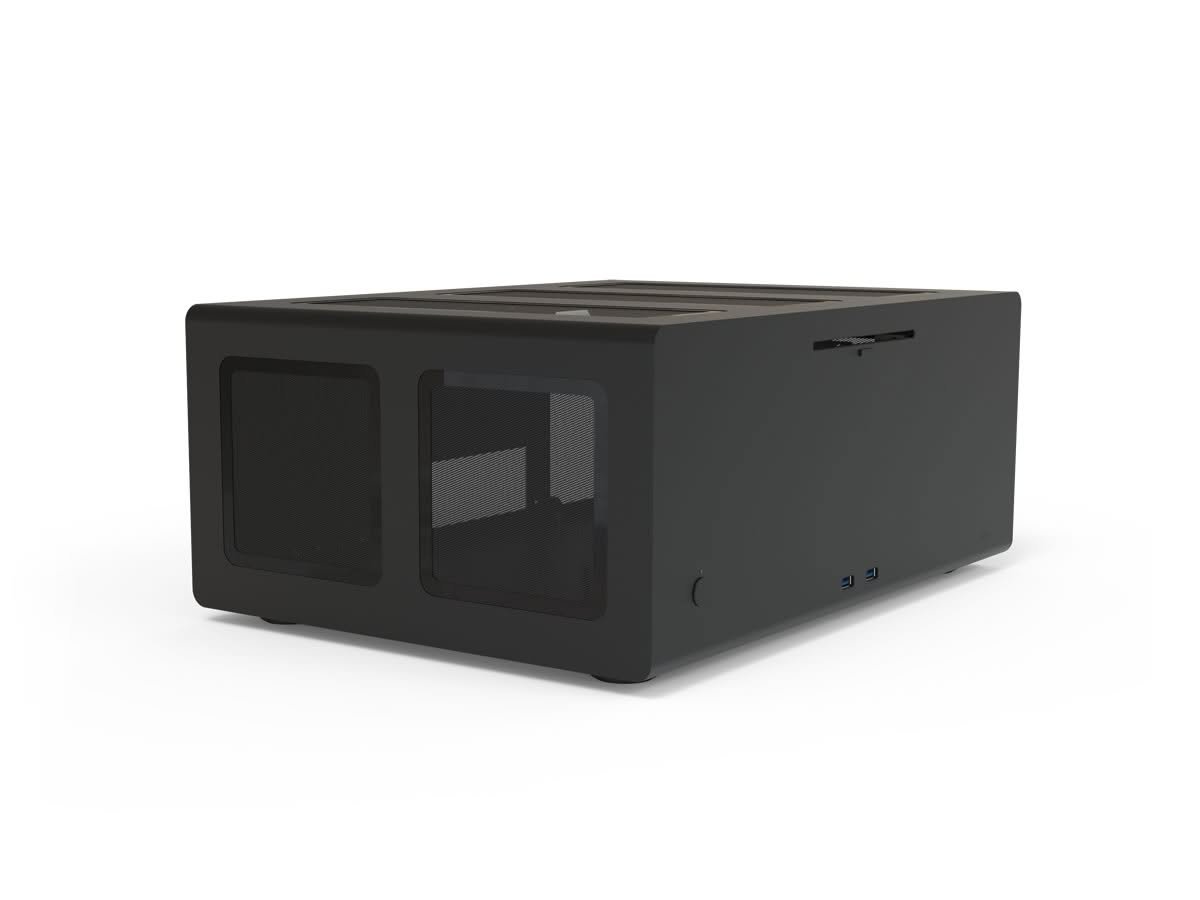

There is an additional upper mounting rail which is designed for fans and water cooling radiators, and combined with side panel venting, provides incredible amounts of cooling potential. Fan grills have been specially chosen to filter dust whilst maximising airflow and can all be externally removed for easy cleaning.

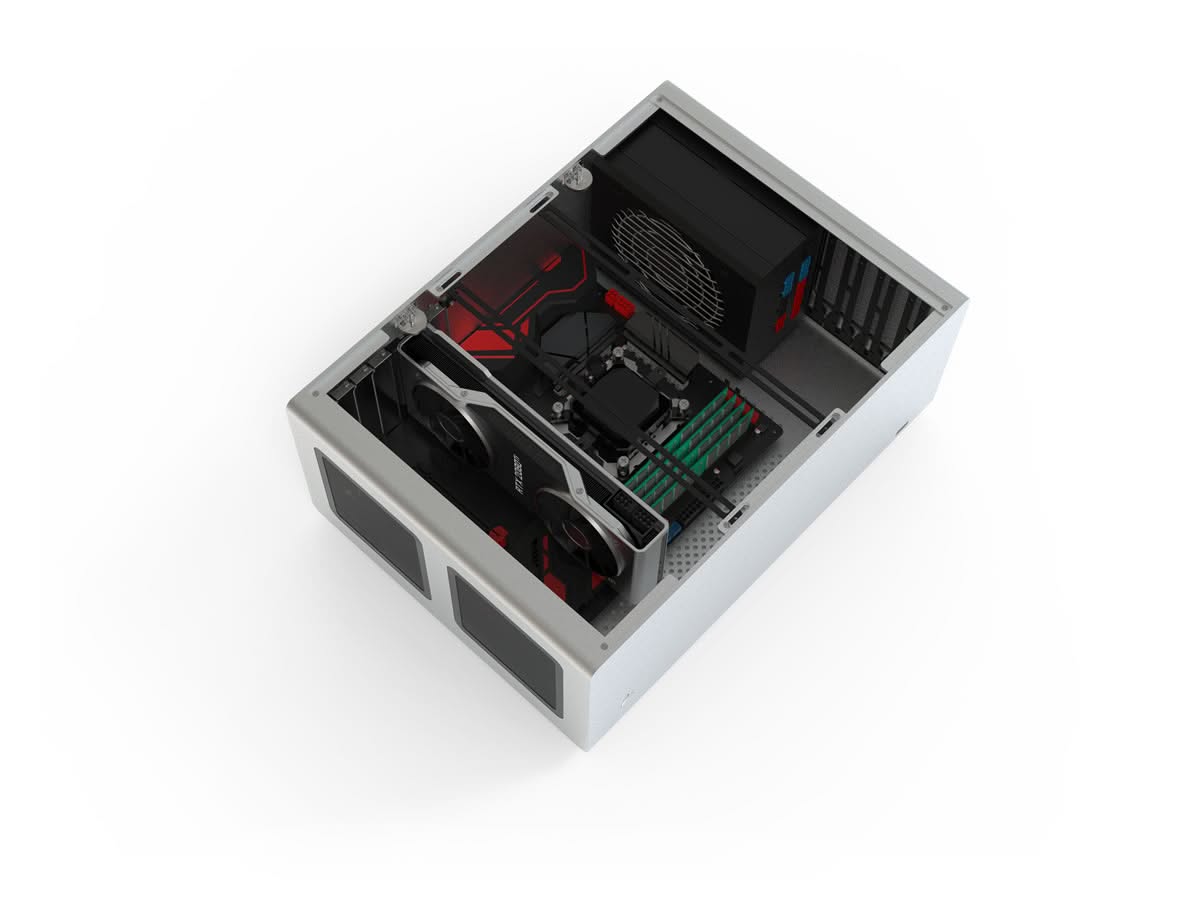

The open internal structure and flexible design allows for oversized PSU’s, 310mm long expansion cards, and 140mm + 2x120mm water cooling whilst still maintaining a footprint of just 420x320x184mm, making it perfectly suited for the high end home entertainment system.
Audio/Video (HTPC) Horizontal Desktop
or Mini-ITX, or Micro-ATX, or E-ATX support depending on motherboard depth
No max length but may impact drive or fan mounting location.

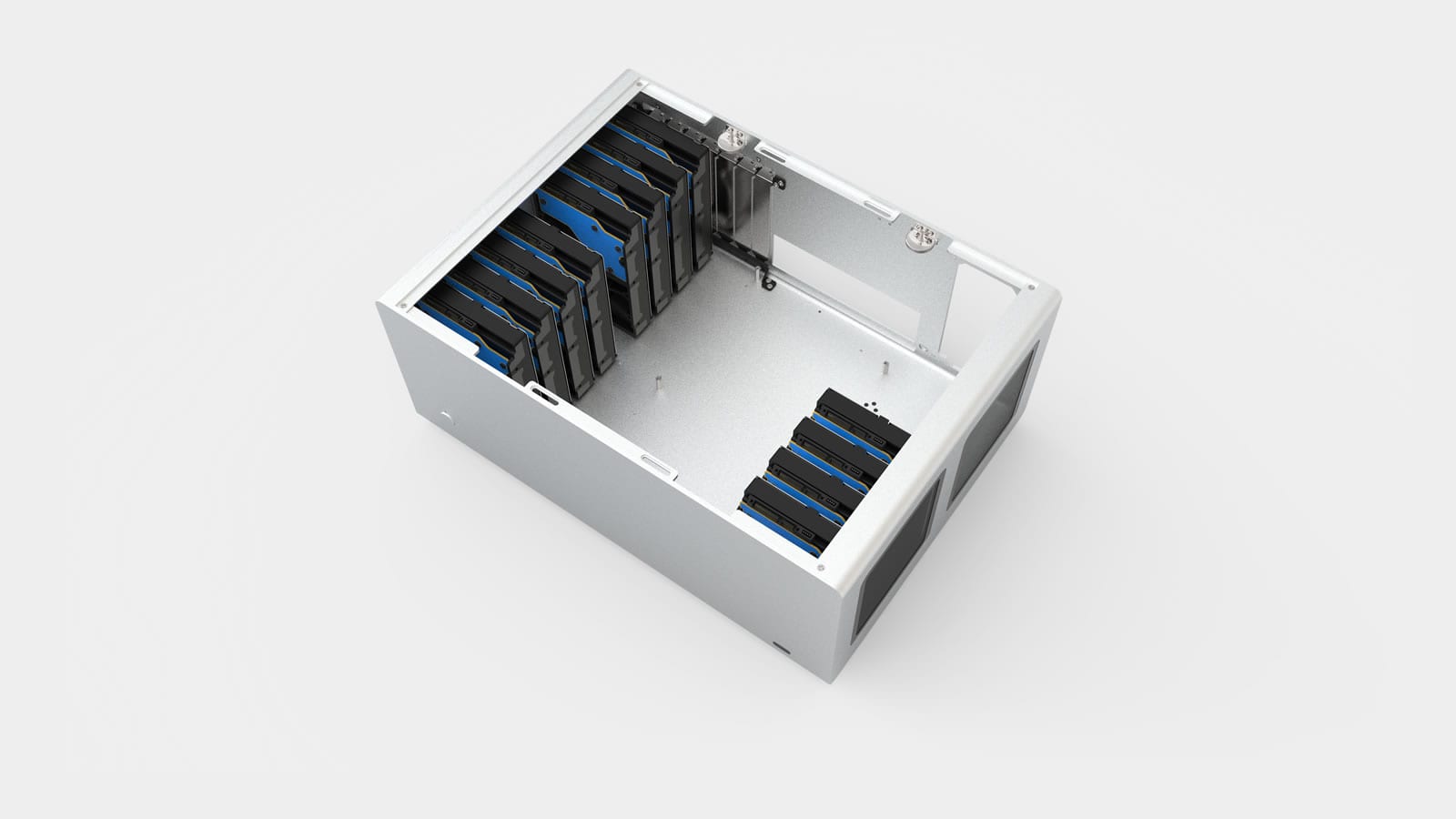

MAX 24 x 2.5″ or 12 x 3.5″ (with ITX), MIN 2 x 2.5″ + 5 x 3.5″ (with ATX)
4mm thick extruded sides and bottom panel, sandblast & anodized finish
440 x 320 x 175mm (D x H x W), 432 x 310 x 168mm Internal
4.4kg NET, 5.4kg GROSS (packed weight)
Maximum height of cooler without upper brackets being populated

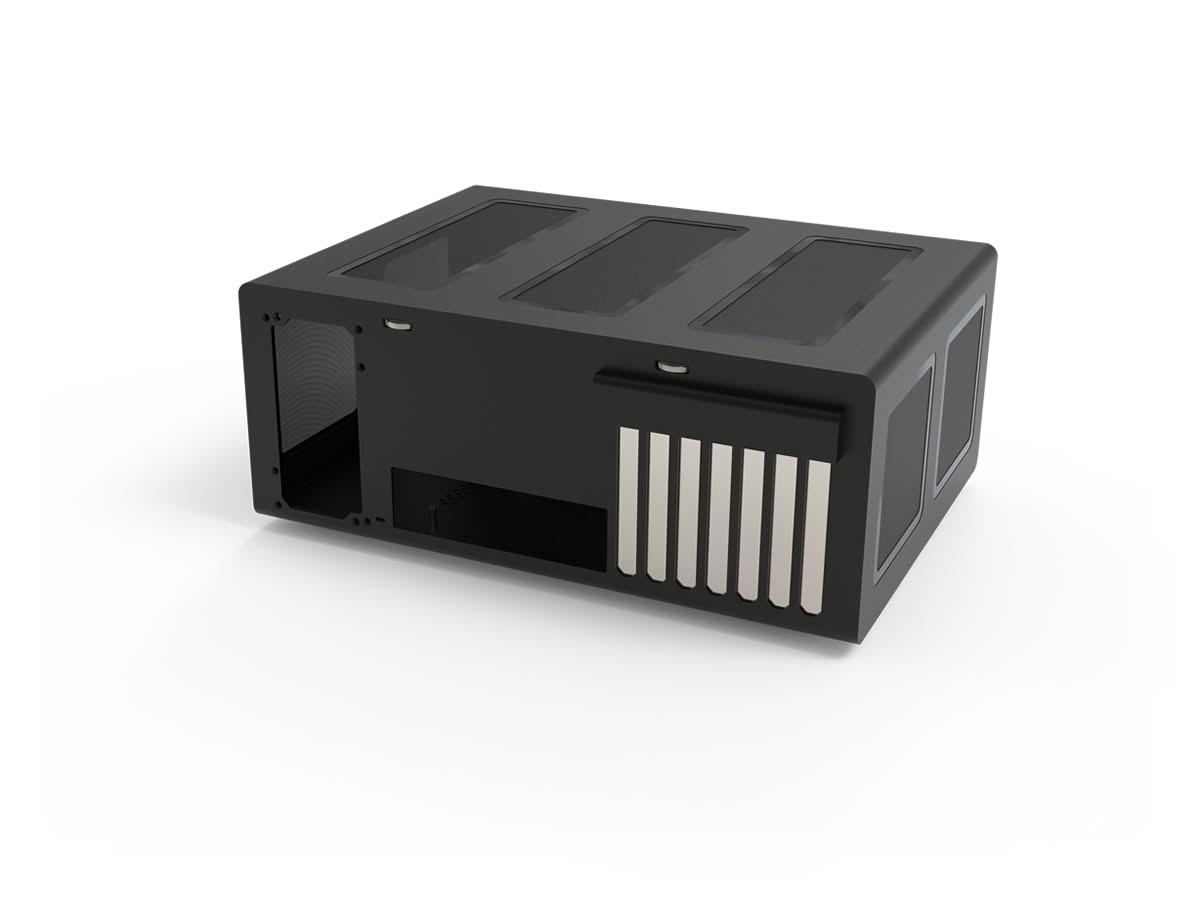

7 slots with maximum card length of 310mm and height of 130mm
Support for multiple 80, 92, 120 or 140mm fans. None included.
120 to 280mm radiators on sides or upper bracket. Will impact other hardware
19PIN 3.0 motherboard connector, only on F12C OPT Version
EAN: 8718469091096. OPT - SKU: ST-F12CS-OPT, EAN: 8718469091126
EAN: 8718469091089. OPT - SKU: ST-F12CB-OPT EAN: 8718469091119

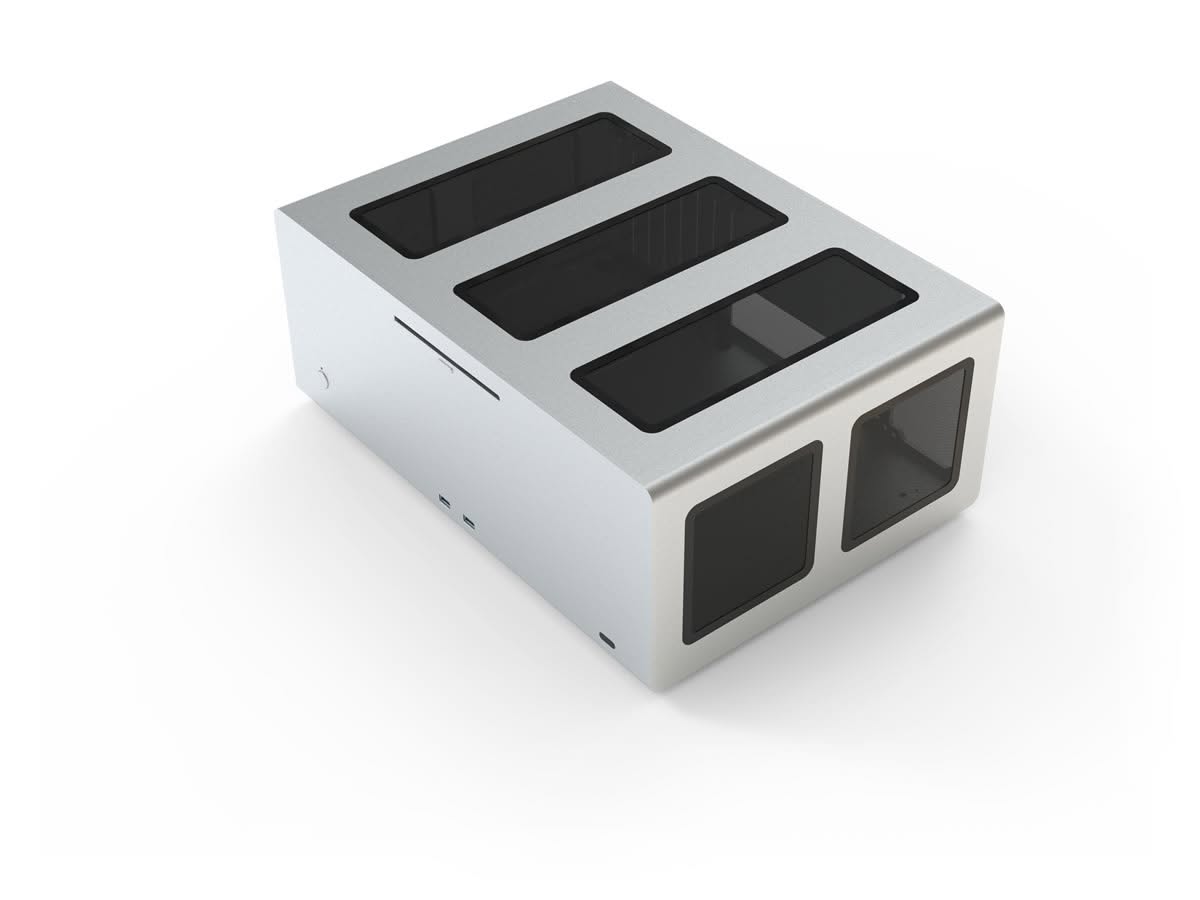

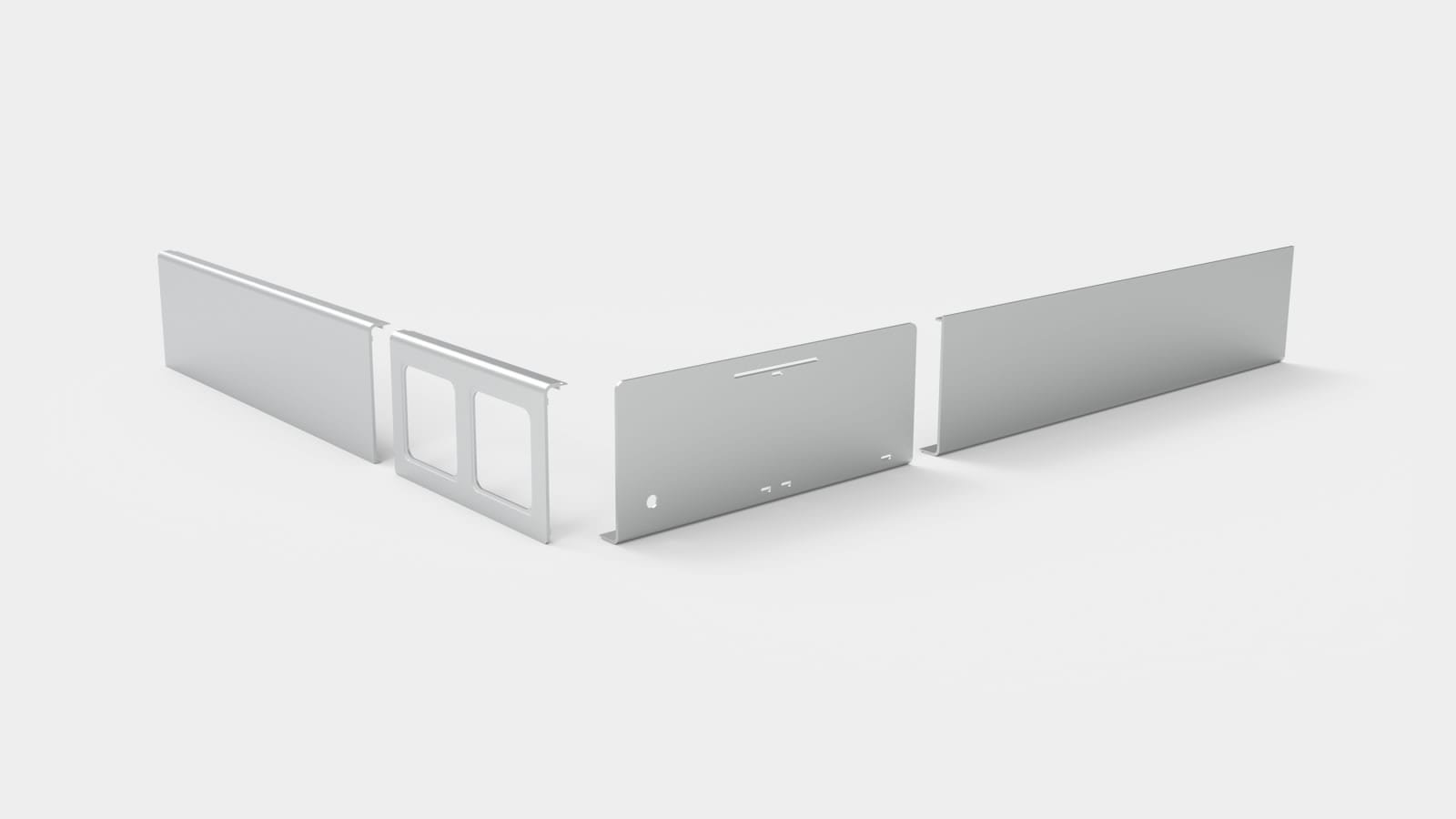

EXTRUDED AND PRECISION MILLED PANELS
Unlike the majority of cases on the market (even the aluminium ones) the panels of the F12C are constructed using a meticulous process of extruding aluminium profiles that are then precision milling, hand polishing, sandblasting and finished using anodizing. This give an ultra premium look, feel and finish to all the parts.

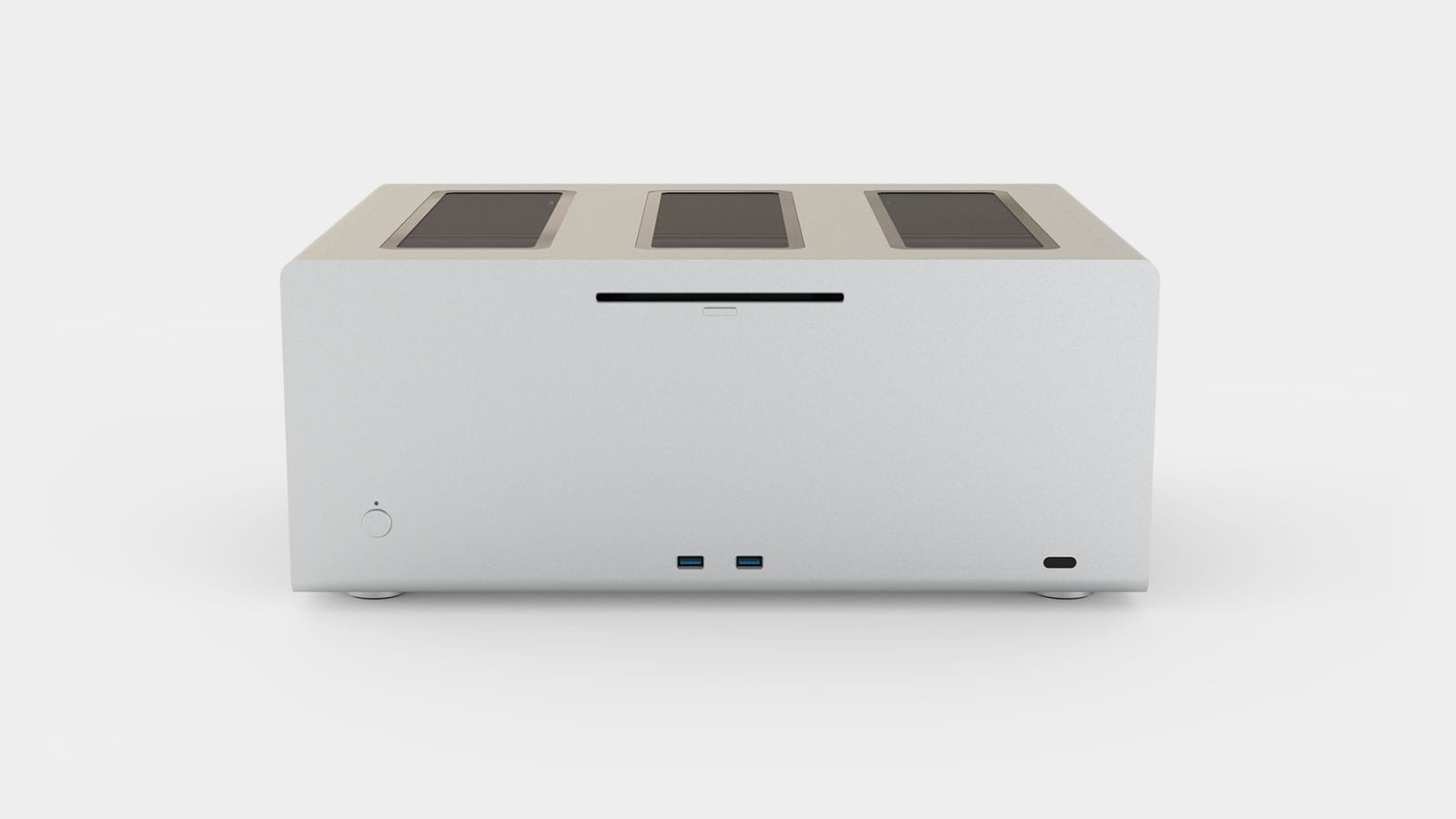

DESIGNED FOR THE LIVING ROOM ENVIRONMENT
With media consumption on mind the F12C follows the standard AV equipment width so it can comfortably fit standard living room cabinets. Its high grade finish also perfectly compliments existing home entertainment hardware.

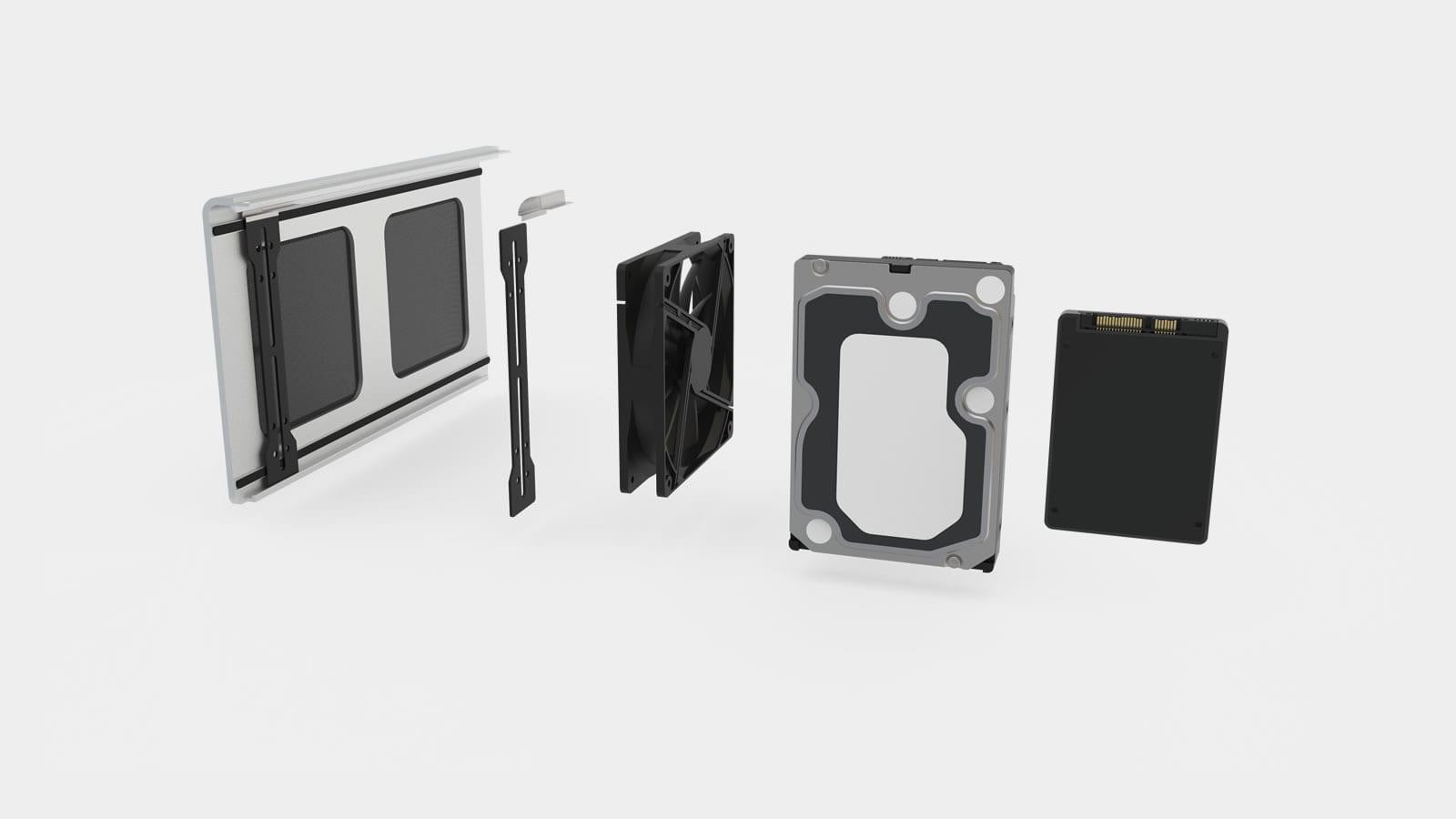

A NEW AND FLEXIBLE WAY TO MOUNT HARDWARE
Introducing the ‘Universal Bracket’, a new drive and fan mounting system that does away with traditional fixed bays. Drives and fans can be mounted anywhere along both sides of the case and at virtually any orientation. This allows you to mix, match and perfectly position drives and fans for optimal cooling and hardware compatibility.

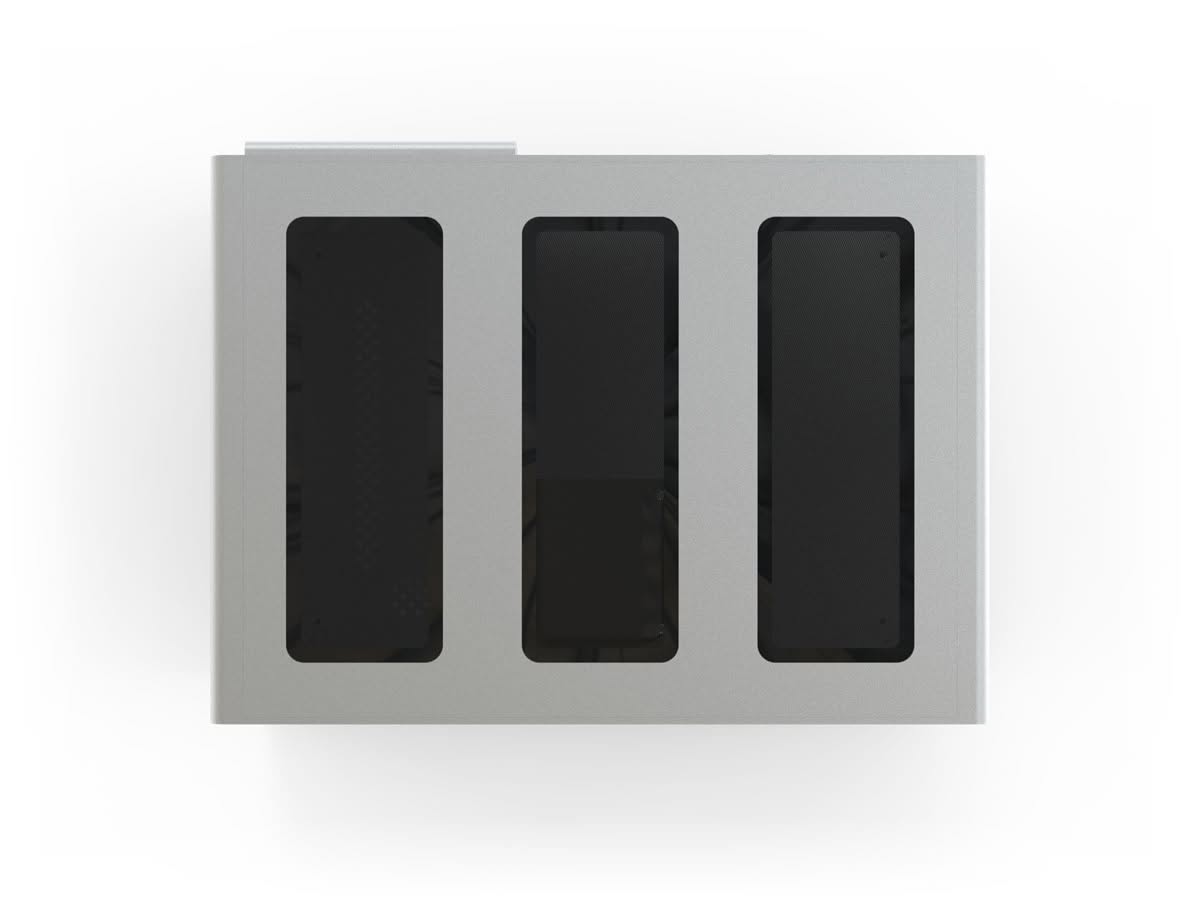

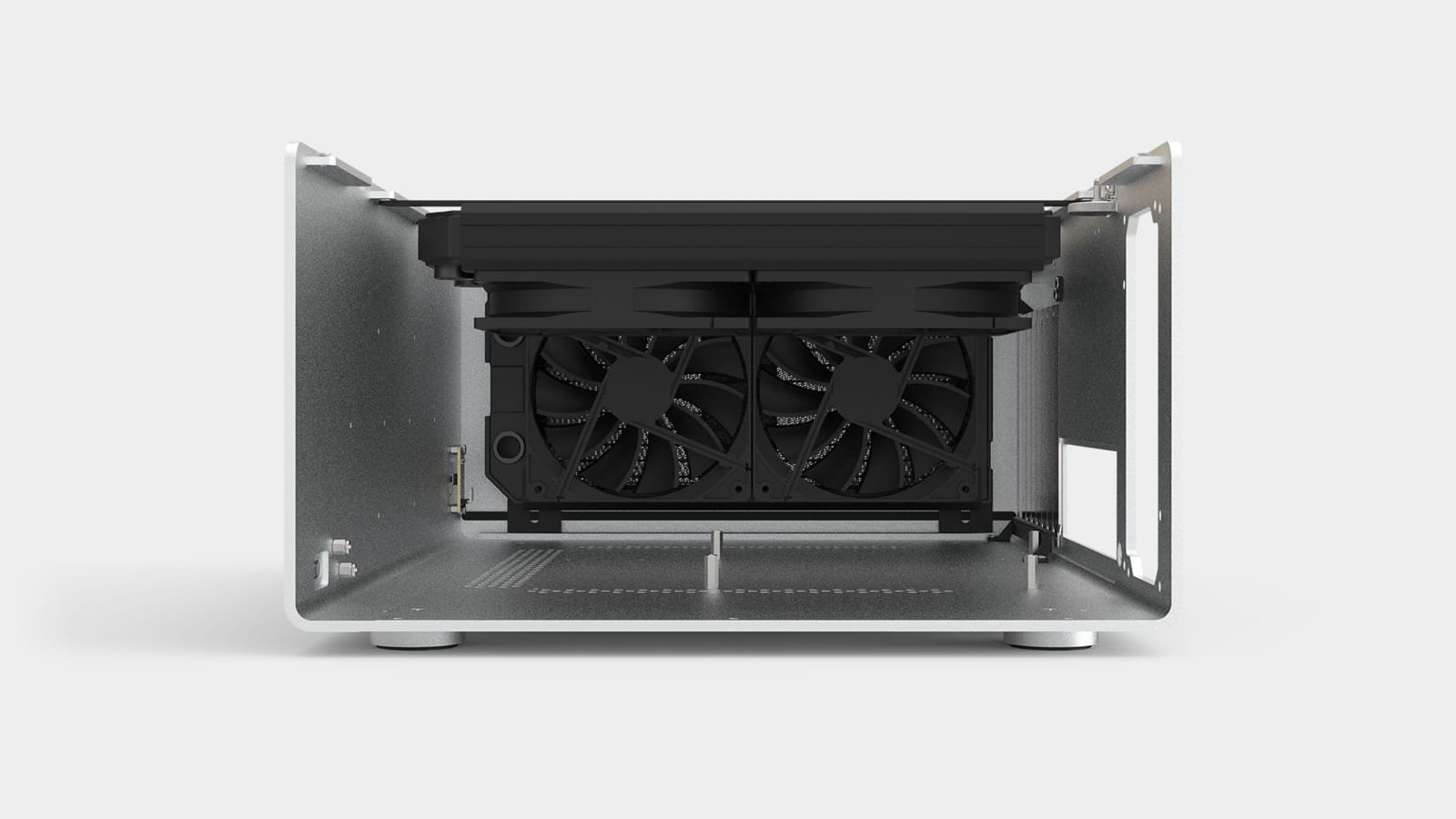

SIDE AND UPPER COOLING POTENTIAL
For a system that is designed to be used in a living room, keep cool and quiet is important, so cooling is important. The F12C features venting on both side and the top panel, and with the bracket system, can even support up to 240mm radiators
