Fit the Motherboard

Motherboard Size

ITX

Micro-ATX

FULL ATX

The BC1 was designed to accommodate a FULL ATX size motherboard but it can also be used with Micro-ATX and MINI-ITX motherboard.

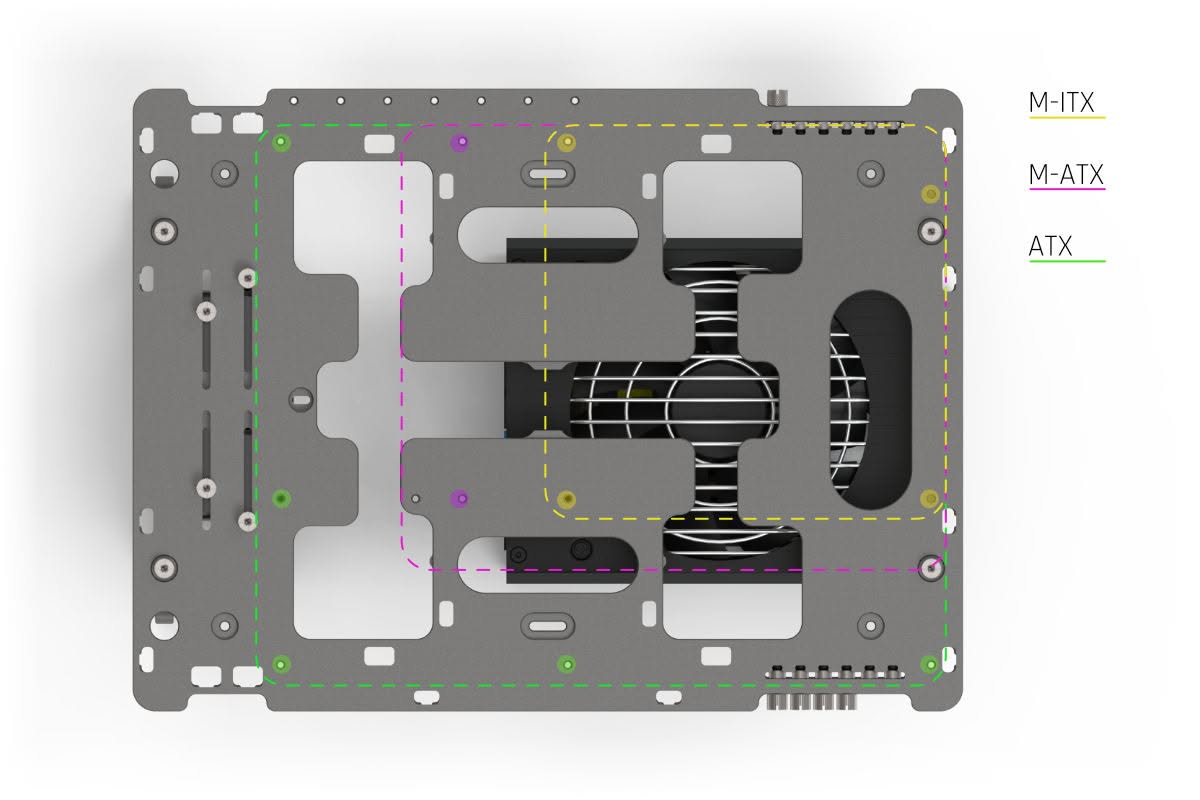

Depending on the size of board being fitted, you will need to install the standoffs in the corresponding locations.

Mini-ITX motherboards require 4 standoffs, Micro-ATX need 6 and Full ATX typically need 9, so both pushpin and screw type standoffs can be used.

Install the Standoffs

PushPin Standoff

M3 Standoff

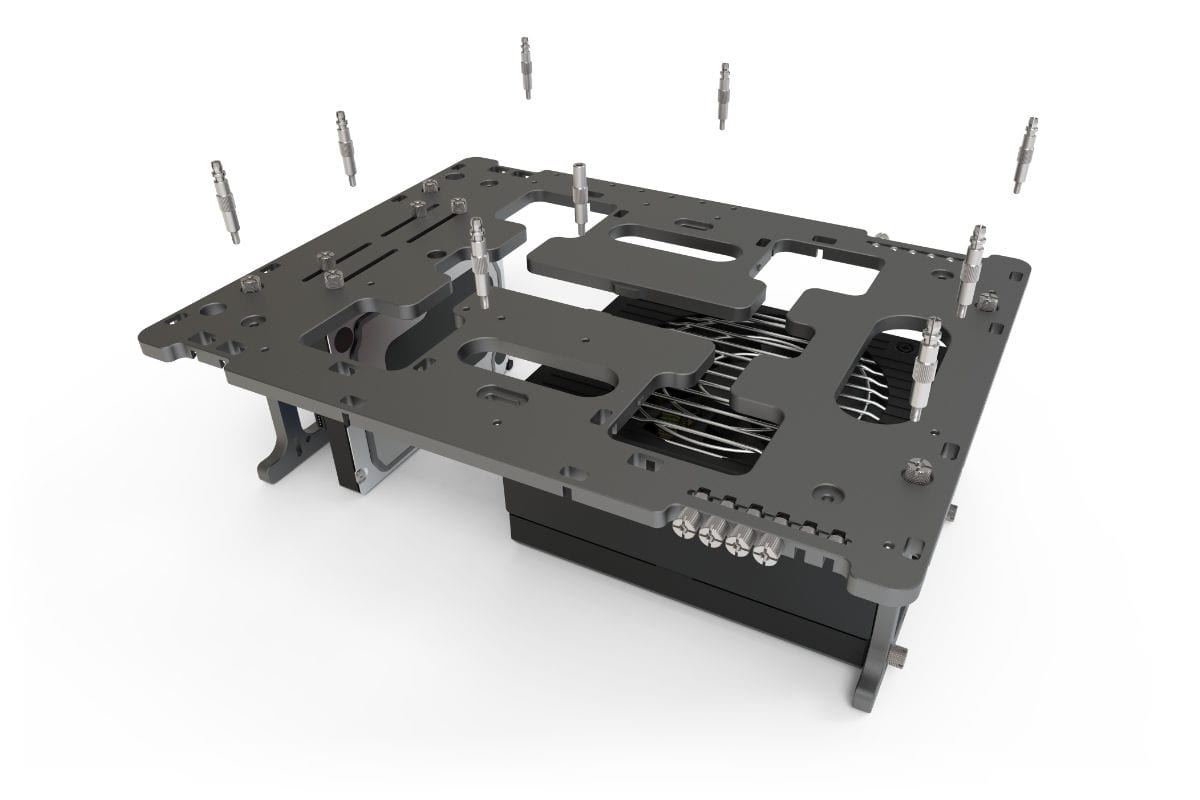

Install either the pushpin or M3  standoffs in the appropriate holes to match the motherboard size and location of the mounting points.

Pushpin standoffs can be use for quick and easy tooless motherboard installation. M3 standoffs can be used for a more secure permanent installation. A combination of both can be used for easy installation with added security.

Install the Motherboard

ATX Motherboard

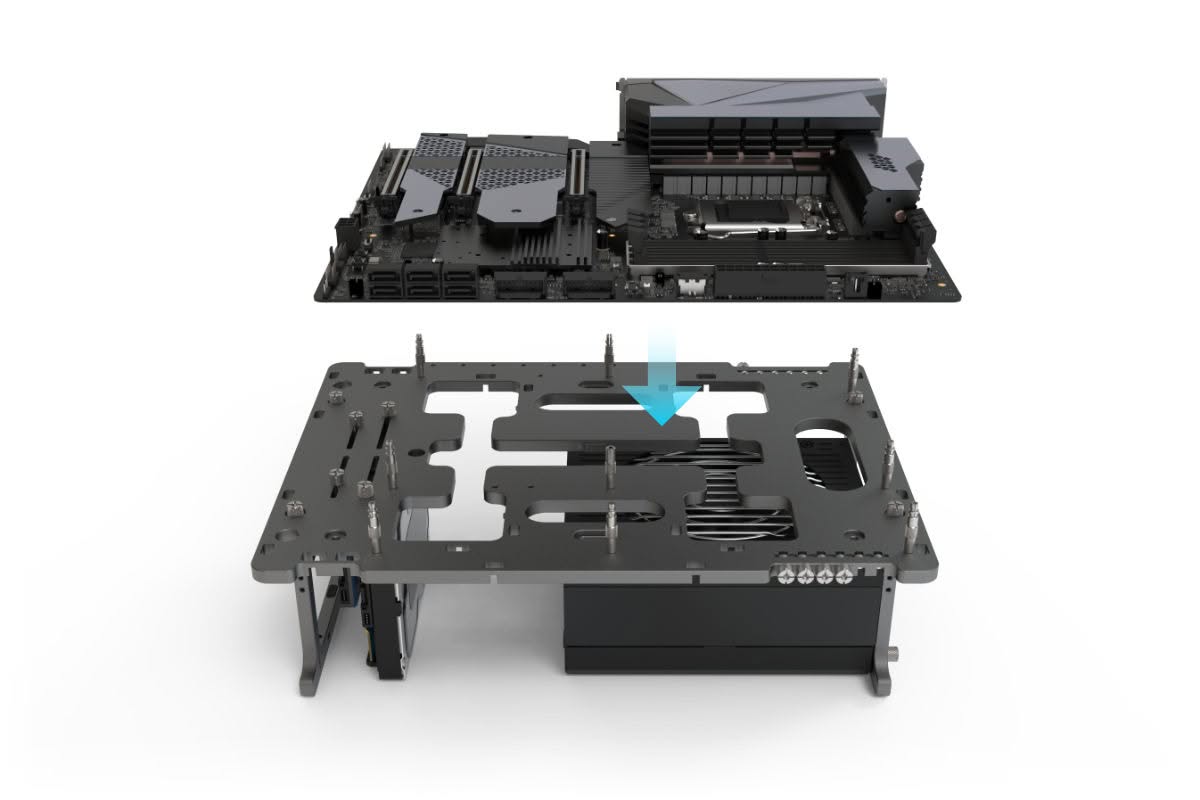

Ensure once again that the correct holes have been used for the standoffs, then lower the motherboard onto them.If using the pushpin standoffs, give a firm push until yo feel the motherboard ‘click’ into place.If using the M3 standoffs, M3 screws should be used to secure the motherboard to them.

Don't forget to fit any CPU cooler retention hardware to the back of the motherboard before fitting it to the table
